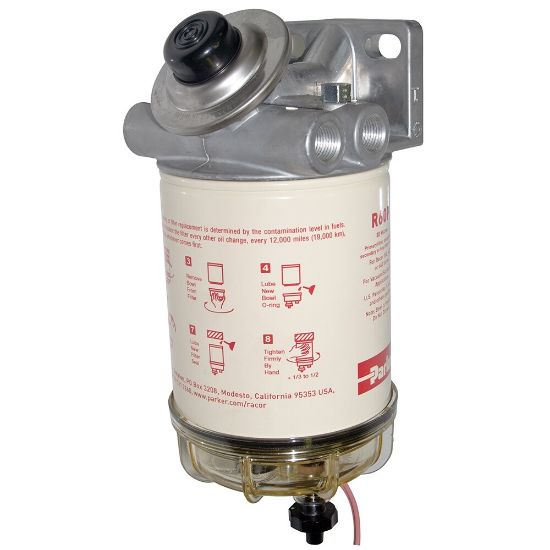

Fuel Filter Water Separator – Racor Spin-on Series - 460R1230

Name: Fuel Filter Water Separator – Racor Spin-on Series - 460R1230
SKU: 460R1230
Price: 519.89 USD
Availability: InStock

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:

3 in stock

Kansas City, KS

SKU 460R1230

$519.89

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Location	North America and EMEA regions
Micron Rating	98% @ 30 Micron	Mounting	Bracket Included
Bowl Type	Standard, Clear Engineering Plastic	Part Type	Filter Assembly
Bowl Material	Clear Engineering Plastic	Heater Power Rating	12V / 300W (Diesel Only)
Flow Rate	60 gph (227 lph)	Port Size	3/8"-18 NPTF (SAE J476)
Product Series	Diesel Spin-on 400	Integral Primer Pump Included	Button Priming Pump (Diesel)
Division	Engine Mobile Original Equipment Division	Brand	Racor
Operating Temperature	-40 to 121 °C	Product Type	Diesel Spin-on FF/WS
Head Material	Aluminium Alloy	Number of Ports	2 Inlet / 2 Outlet
Filter Element Type	30 Micron Aquabloc Spin-on	Accessories Included	See Product Support Tab
Maximum Operating Pressure	30 psi	For Fluid Type	Diesel
Maximum Fluid Temperature	190.0 °F	Width	114.0 mm
Depth	121.0 mm	Compatible Element	R60S = "2" Micron<br/>R60T = 10 Micron<br/>R60P = 30 Micron
Weight	1.3 kg	Height	279.0 mm
Clean Pressure Drop	0.39 psi

Product resources

Literature and Reference Materials, Selector Guides

Racor--400 Diesel Spin-on--RSL0366 (PDF)

Literature and Reference Materials
