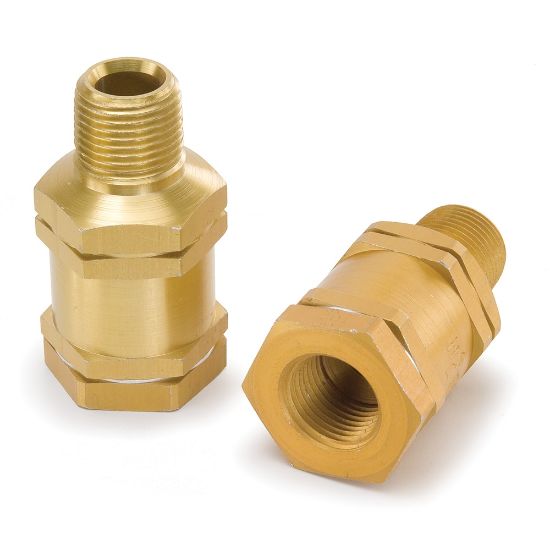

2600 - Fuel Line Check Valves, Swing Type - 2600 Series

Name: 2600 - Fuel Line Check Valves, Swing Type - 2600 Series
SKU: 2600
Price: 58.36 USD
Availability: LimitedAvailability

Parker's in line, swing check valves are designed to protect low pressure air, liquid, or gas systems from fluid back pressure.

Availability:

4 in stock

WICHITA, KS	2
Joplin, MO	2

Partner Available:

54 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 2600

$58.36/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Inlet Port Size (inch)	1/4 - 18 NPTF	Outlet Port Size (inch)	1/4 - 18 NPTF
Inlet Port Connection Type	Female NPTF	Outlet Port Connection Type	Male NPTF
Minimum Operating Temperature	-40 °F	Maximum Operating Pressure	250 psi
Maximum Operating Temperature	200 °F	Body Material	Aluminum
Configuration	n/a	Valve Type	Swing-trap Door
Connection Size	1/4"-18 inch	Dimensional Weight	0.044514388489208634 lb
Mounting Type	Threaded	Seat Material	Nitrile
Actuation Type	Mechanical	Connection Type	Male NPT to Female NPT
Cracking Pressure	1/2 psi	Maximum Flow Rate	6 Gal/min
