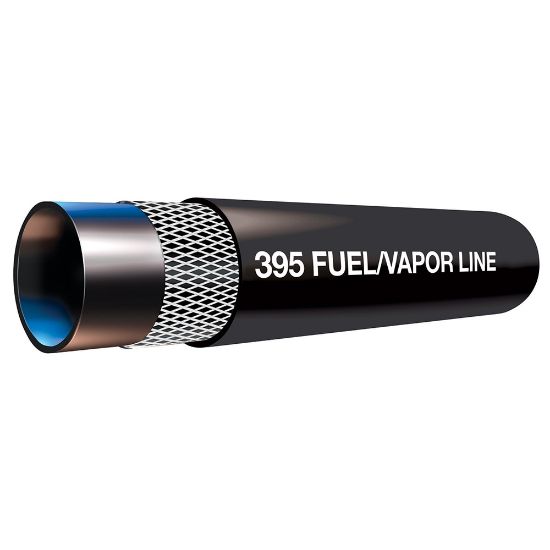

39552 - Fuel Line/Vapor Emission Hose, Series 395

Name: 39552 - Fuel Line/Vapor Emission Hose, Series 395
SKU: 39552
Price: 2.03 USD
Availability: InStock

Fuel Line/Vapor Emission Hose is designed for engine fuel supply and vapor emission containment in applications to 257°F and 75 psi, Series 395

Availability:

473 in stock

TOPEKA, KS

473

Partner Available:

2477 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 39552

$2.03/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/8
Maximum Working Pressure (psi)	50	Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	125 °C	Inside Diameter	3/8 inch
Package Type	Coil	Maximum Operating Pressure	50 psi
Cover Color	Black	Cover Structure	Smooth
Hose Reinforcement Material	2 Plies of Textile	Minimum Bend Radius	3.5 inch
Vacuum Pressure Rating	24 Inch-Hg	Media	Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart.
Cover Material	Chloroprene Rubber (CR)	Outside Diameter	0.625 inch
Length per Package	250 ft	Weight	0.06 kg
Specifications Met	SAE 30R7	Hose Inner Tube Material	Nitrile

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)

Compliance, Certifications & Safety

FCG HPD REACH Annex XIV (PDF)
