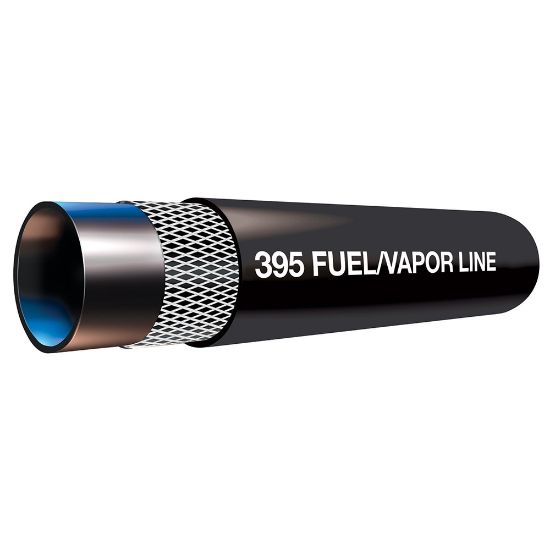

39553 - Fuel Line/Vapor Emission Hose, Series 395

Name: 39553 - Fuel Line/Vapor Emission Hose, Series 395
SKU: 39553
Price: 1.43 USD
Availability: InStock

Fuel Line/Vapor Emission Hose is designed for engine fuel supply and vapor emission containment in applications to 257°F and 75 psi, Series 395

Availability:

787 in stock

Wichita, KS	500
Olivette, MO	285
TOPEKA, KS	2

Partner Available:

535 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 39553

$1.43/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/16
Maximum Working Pressure (psi)	75	Minimum Operating Temperature	-40 °F
Minimum Bend Radius	2 inch	Weight	0.03 kg
Package Type	Coil	Cover Color	Black
Cover Structure	Smooth	Hose Reinforcement Material	2 Plies of Textile
Vacuum Pressure Rating	24 Inch-Hg	Maximum Operating Temperature	257 °F
Inside Diameter	3/16 inch	Cover Material	Chloroprene Rubber (CR)
Length per Package	250 ft	Maximum Operating Pressure	75 psi
Media	Natural Gas	Outside Diameter	10.3 mm
Specifications Met	SAE 30R7	Hose Inner Tube Material	Nitrile
