G15B73

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU G15B73

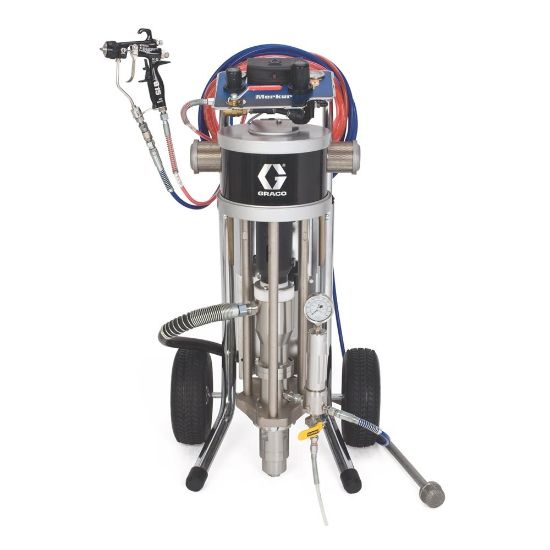

Graco’s Merkur bellows piston pumps provide low maintenance with no seals exposed to the atmosphere. These pumps are designed to eliminate conventional throat seals, providing high reliability for moisture-sensitive materials.

Products specifications

Attribute name	Attribute value
UOM	EA	Series	Bellows
Pressure Type	High Pressure	Convertible	Non-Convertible
Maximum Working Pressure	1500 psi	Maximum Flow Rate	2.4 GPM
Maximum Hose Length	25 ft	Model	Merkur
Gun Model	G15	Frame Configuration	Cart
Number of Guns	1	Fluid Outlet Thread Type	NPT
Mount Type	Cart	Pump Ratio	15:1
Pump Type	Pneumatic Piston	Motor Type	Pneumatic
Power Source	Air	Outlet Paint Filter	60 Mesh Stainless Steel Screen
Fluid Inlet Size	1 Inch	Fluid Inlet Thread Type	NPT
Gun Included	Yes	Gun Type	Air-Assisted
Fluid Outlet Size	3/4 Inch
