G25B07

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU G25B07

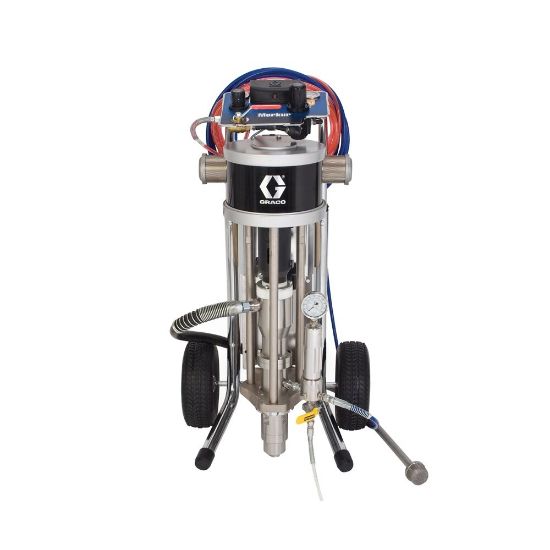

Graco’s Merkur bellows piston pumps provide low maintenance with no seals exposed to the atmosphere. These pumps are designed to eliminate conventional throat seals, providing high reliability for moisture-sensitive materials.

Products specifications

Attribute name	Attribute value
UOM	EA	Series	Bellows
Pressure Type	High Pressure	Maximum Flow Rate	0.8 GPM
Maximum Working Pressure	2500 PSI	Convertible	Non-Convertible
Gun Model	G40	Power Source	Air
Fluid Inlet Size	3/4 Inch	Pump Type	Pneumatic Piston
Motor Type	Pneumatic	Pump Ratio	25:1
Fluid Inlet Thread Type	NPT	Model	Merkur
Gun Included	Yes	Gun Type	Air-Assisted
Fluid Outlet Thread Type	NPT	Number of Guns	1
Maximum Hose Length	25 ft	Fluid Outlet Size	3/8 Inch
Outlet Paint Filter	60 Mesh Stainless Steel Screen	Frame Configuration	Cart
Mount Type	Cart
