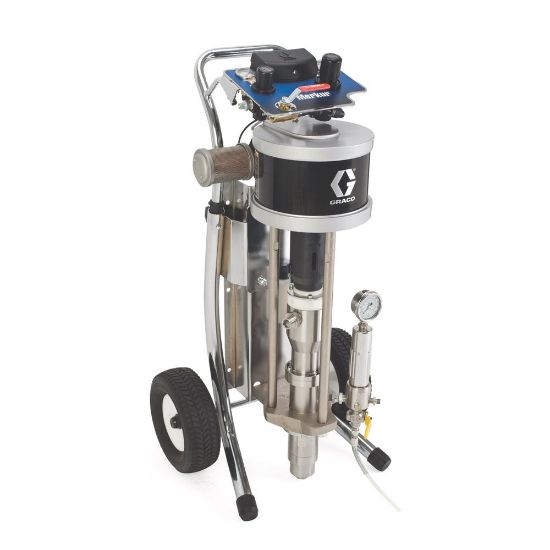

G35B21

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU G35B21

The gentle pumping action of the Merkur Bellows Pump, combined with reduced sealing surfaces, provides superior handling of shear-sensitive materials, including UV coatings and waterborne materials.

Features

Merkur Air Motor Technology
Leak Proof Pump Lower
Less Pulsation for Better Results
Air Valve
Quick Removal Coupler
Quick Removal Coupler
Improved Bellows Seal Design
Overflow Chamber (Optional)
Throat and Piston Packings

Applications

Supply

Products specifications

Attribute name	Attribute value
UOM	EA	Series	Bellows
Maximum Working Pressure	3500 PSI	Maximum Operating Temperature	120 deg F
Number of Pieces	2	Fluid Inlet Size	3/4 Inch
Motor Type	Pneumatic	Model	Merkur
Fluid Inlet Thread Type	NPT	Fluid Inlet Thread Gender	Male
Mount Type	Cart	Fluid Outlet Thread Type	NPT
Fluid Outlet Size	3/8 Inch	Fluid Outlet Thread Gender	Male
