G36C15

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU G36C15

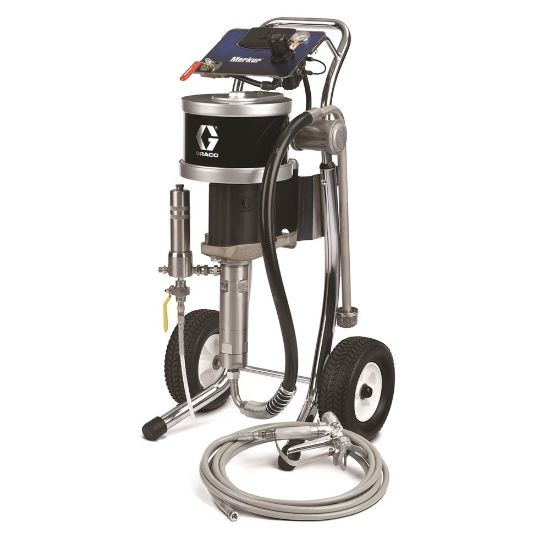

The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	1.6 GPM
Inlet Paint Strainer	8 Mesh;16 Mesh	Maximum Working Pressure	3600 psi
Series	Standard	Convertible	Non-Convertible
Outlet Paint Filter	60 Mesh Stainless Steel Screen	Fluid Outlet Size	3/8;1/4 Inch
Power Source	Air	Air Inlet Thread Gender	Female
Pressure Control Type	Air Regulator	Control Type	Fixed Ratio
Frame Configuration	Cart Mount	Pump Sleeve Material	Stainless Steel
Hose Inlet Diameter	1/4 Inch	Motor Type	Pneumatic
Fluid Outlet Thread Gender	Male	Fluid Inlet Size	3/4 Inch
Pump Rod Type	Carbon Steel	Mix Ratio	36:1
Model	Merkur	Air Inlet Size	1/2 Inch
Volume Per Cycle	100 Cubic cm	Pump Pressure Ratio	36:1
Maximum Sound Pressure Level	68.9 dB(A)	Fluid Inlet Thread Type	NPT
Maximum Fluid Working Pressure	3600 psi	Number of Guns	1
Air Inlet Thread Type	NPT	Maximum Tip Size	0.029 Inch
Material Application	Paints;Primers	Mount Type	Cart
Fluid Outlet Thread Type	NPT	Lower Configuration	Stainless Steel;3/4 in. Inlet;Fluid Filter;Drain Valve
Maximum Air Inlet Pressure	100 psi	Pump Type	Pneumatic Piston;Displacement
