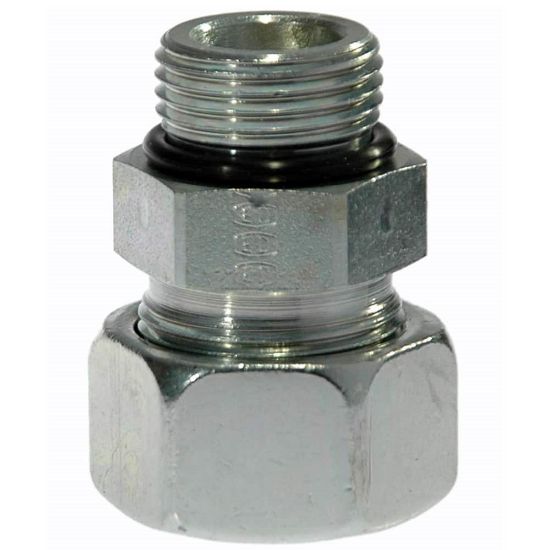

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

GE22L11/16UN71

Availability:	Backordered Estimated Lead Time: 75 days
Partner Available:	3 in stock

SKU GE22L11/16UN71

$353.67/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

The main function of Ermeto DIN male stud high pressure hydraulic tube fittings is to connect different numbers of tubes or hoses. This broad range of fittings, types GEO, GE-M-ED, GE-R-ED up to GE-M is available in steel and in a stainless steel version. Depending on the specific application, these fittings can be delivered with cutting ring (EO-PSR or DPR) or elastomeric seal (EO-2).

Applications:

Suitable for general hydraulic applications.

Features:

Steel and Stainless steel fittings have a high corrosion resistance to aggressive media and environmental influences. These features extend the range of applications.

High pressure: Ermeto DIN male stud high pressure hydraulic tube fittings have pressure ratings of up to 800 bar (S series) and 500 bar (L series), so that the fittings can be used in a wide range of applications.

Markets:

Products specifications

Attribute name	Attribute value
UOM	EA	Optional Accessories	Pre-Assembled with Nut and EO-DPR Cutting Ring
Tube Outside Diameter 2	22 MM	Connection Size 1	1 1/16-12 UN-2A
Shape	Straight Male Stud Connector	Connection Type 1	Male UNF/UN Thread - O-Ring (ISO 11926)
Connection Type 2	24° Cone End	Series	Light
Seal Material	FKM(VIT)	Parker Division	Tube Fitting
Parker Group	Fluid Connector
