*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

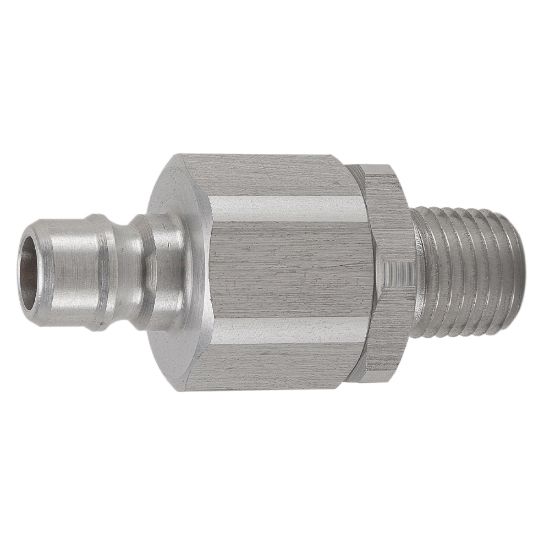

APHN4-4M - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU APHN4-4M

$6.55/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	1/4
Connection Thread Size (inch)	1/4 - 18	Body Material	Aluminum
Valve Type	Unvalved	Coupling Half	Male Nipple
Connection Type	Male NPT	Maximum Operating Pressure	2250
Hex Size	0.56	Valve Type	Unvalved
Minimum Operating Temperature	-40	Seal Material	Nitrile
Plating Type	na	Maximum Operating Temperature	250
Body Material	Aluminum

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
