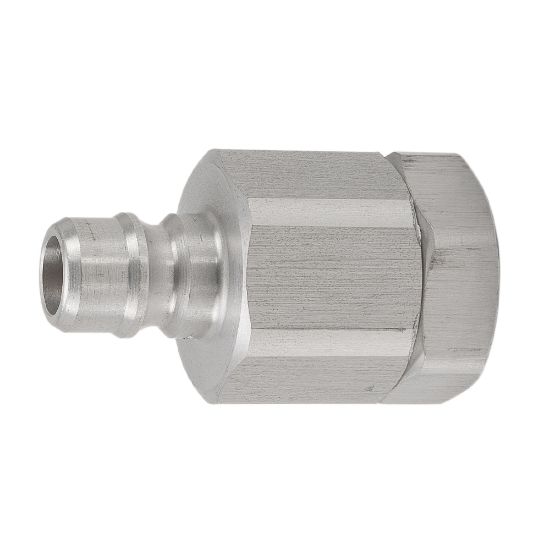

Picture of General Purpose, Hydraulic Quick Couplings - H Series - AVHN4-4FV

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

General Purpose, Hydraulic Quick Couplings - H Series - AVHN4-4FV

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.
Availability:
Backordered
SKU AVHN4-4FV
$33.51
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEACoupling HalfMale Nipple
Body Size (inch)1/4Connection Thread Size (inch)1/4 - 18
Connection TypeFemale NPTFValve TypePoppet
Body MaterialAluminumMaximum Operating Pressure2250
DivisionQuick Coupling DivisionMaximum Operating Temperature400 °F
Product TypeManual ConnectSeal MaterialFluorocarbon
Minimum Operating Temperature-15 °FValve TypePoppet
Body MaterialAluminumHex Size0.88 inch
ApplicationGeneral PurposePlating Typen/a
