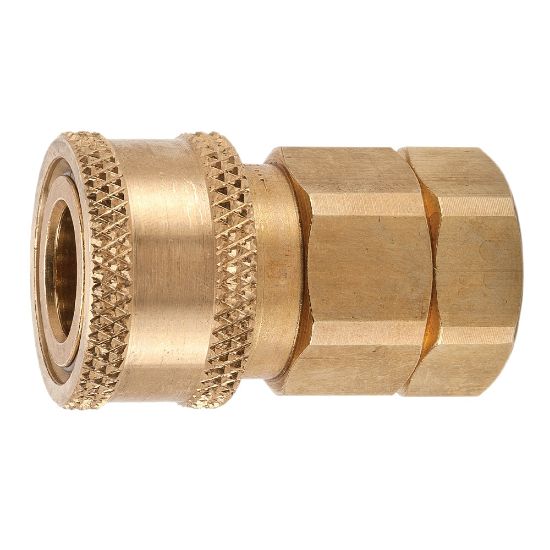

BPHC12-12FSL - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU BPHC12-12FSL

$73.07/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	2000
Valve Type	Unvalved	Body Size (inch)	3/4
Coupling Half	Female Coupler	Connection Type	Female NPTF
Connection Thread Size (inch)	3/4 - 14	Body Material	BRASS
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Hex Size	1.50 inch	Body Material	Brass
Valve Type	Unvalved	Seal Material	Nitrile
Plating Type	n/a

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
