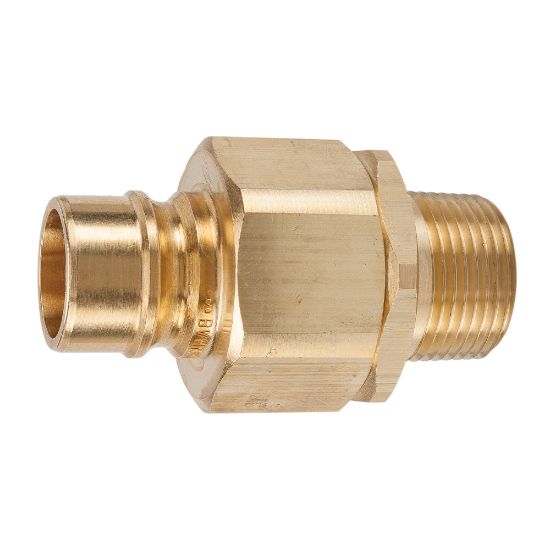

BPHN4-2M - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	1 Limited Stock

SKU BPHN4-2M

$9.00/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Male NPT
Valve Type	Unvalved	Connection Thread Size (inch)	1/8 - 27
Maximum Operating Pressure	2250	Coupling Half	Male Nipple
Body Material	BRASS	Body Size (inch)	1/4
Dimensional Weight	0.015995203836930455 lb	Hex Size	0.56 inch
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Body Material	Brass	Seal Material	Nitrile
Valve Type	Unvalved	Plating Type	n/a

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
