*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

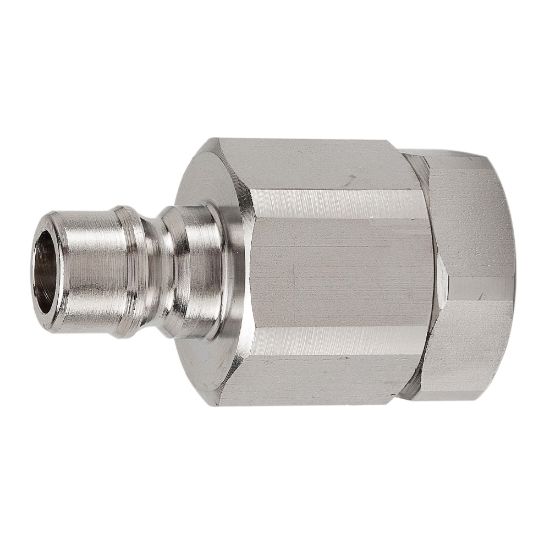

SVHN8-8F - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	12 in stock

SKU SVHN8-8F

$132.75/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Valve Type	Poppet	Maximum Operating Pressure	3750
Body Size (inch)	1/2	Body Material	316 Stainless Steel
Connection Thread Size (inch)	1/2 - 14	Connection Type	Female NPSF
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Dimensional Weight	0.07997601918465227 lb	Seal Material	Nitrile
Body Material	Stainless Steel	Hex Size	1.19 inch
Plating Type	n/a	Valve Type	Poppet

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
