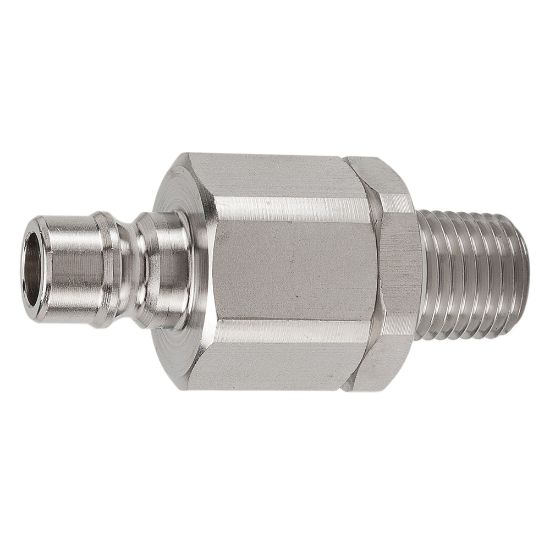

SVHN8-8MV - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU SVHN8-8MV

$179.35/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	3750
Body Size (inch)	1/2	Body Material	316 Stainless Steel
Connection Thread Size (inch)	1/2 - 14	Coupling Half	Male Nipple
Valve Type	Poppet	Connection Type	Male NPT
Hex Size	1.19 inch	Body Material	Stainless Steel
Seal Material	Fluorocarbon	Plating Type	n/a
Valve Type	Poppet	Maximum Operating Temperature	400 °F
Minimum Operating Temperature	-15 °F
