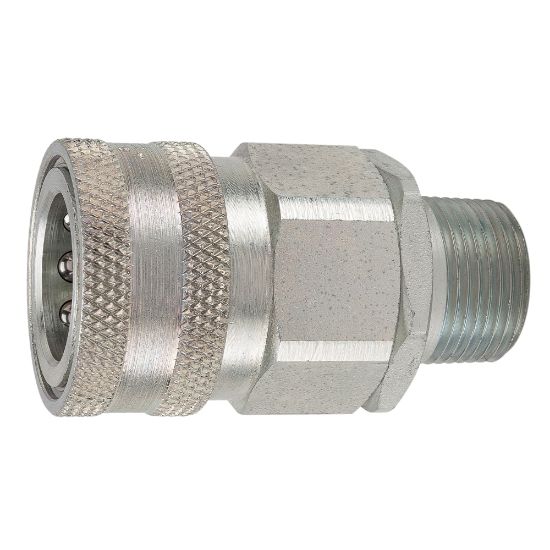

VHC4-4MSL - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU VHC4-4MSL

$31.67/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Valve Type	Poppet	Connection Type	Male NPT
Maximum Operating Pressure	6500	Connection Thread Size (inch)	1/4 - 18
Body Size (inch)	1/4	Coupling Half	Female Coupler
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Plating Type	Zinc with clear trivalent chromate	Body Material	Steel
Seal Material	Nitrile	Hex Size	0.88 inch
Valve Type	Poppet
