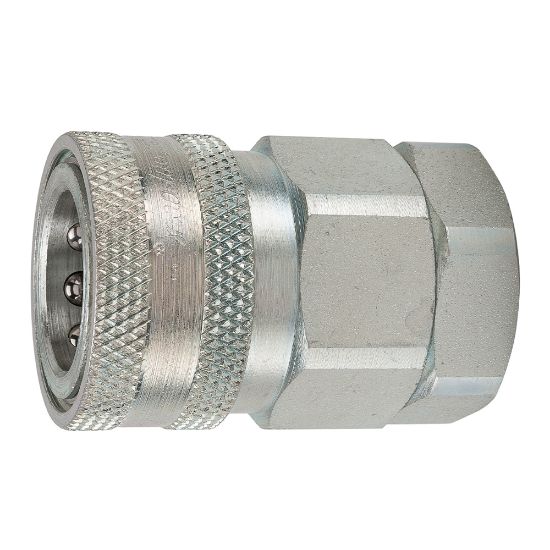

VHC8-8EF - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	5 in stock

SKU VHC8-8EF

$42.58/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Valve Type	Poppet
Body Size (inch)	1/2	Connection Thread Size (inch)	3/4 - 16
Maximum Operating Pressure	4000	Body Material	Steel
Connection Type	Female UNF	Coupling Half	Female Coupler
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Body Material	Steel	Dimensional Weight	0.05341726618705036 lb
Plating Type	Zinc with clear trivalent chromate	Hex Size	1.19 inch
Seal Material	Nitrile	Valve Type	Poppet

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
