*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

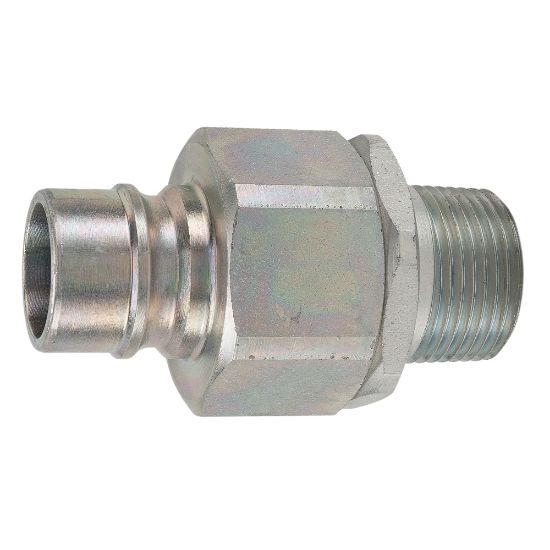

VHN4-4MV - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU VHN4-4MV

$17.52/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Male NPT
Valve Type	Poppet	Body Material	Steel
Coupling Half	Male Nipple	Connection Thread Size (inch)	1/4 - 18
Maximum Operating Pressure	6500	Body Size (inch)	1/4
Maximum Operating Temperature	400 °F	Minimum Operating Temperature	-15 °F
Plating Type	Zinc with clear trivalent chromate	Body Material	Steel
Hex Size	0.88 inch	Seal Material	Fluorocarbon
Valve Type	Poppet

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
