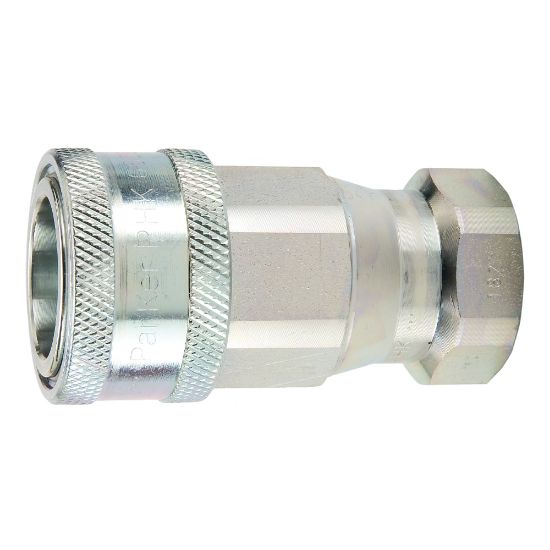

Picture of General Purpose, ISO 7241-A, Hydraulic Quick Couplings - 6600 Series - 6601-4-4

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

General Purpose, ISO 7241-A, Hydraulic Quick Couplings - 6600 Series - 6601-4-4

Parker's hydraulic quick couplers and nipples are ideal for use in applications where fluid lines require fast and easy connection and disconnection.
Availability:
31 in stock
Wichita, KS12
COLUMBIA, MO3
TOPEKA, KS3
Peoria, IL3
Springfield, MO2
Kansas City, KS2
Joplin, MO2
Olivette, MO2
Decatur, IL2
SKU 6601-4-4
$33.48
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection Thread Size (inch)1/4 - 18
Coupling HalfFemale CouplerConnection TypeFemale NPTF
Body Size (inch)1/4"Minimum Operating Temperature-40 °F
Body MaterialSteelDivisionQuick Coupling Division
Seal MaterialNitrileMaximum Operating Temperature250 °F
Plating TypeZinc with clear trivalent chromateProduct TypeManual Connect
ApplicationHydraulicsMaximum Operating Pressure5000 psi
Valve TypePoppetHex Size0.88 inch
Dimensional Weight0.03998800959232614 lbFlow Rate3 Gal/min
Interchange TypeISO 7241-1 Series ASpecifications MetISO 7241-1 Series A
