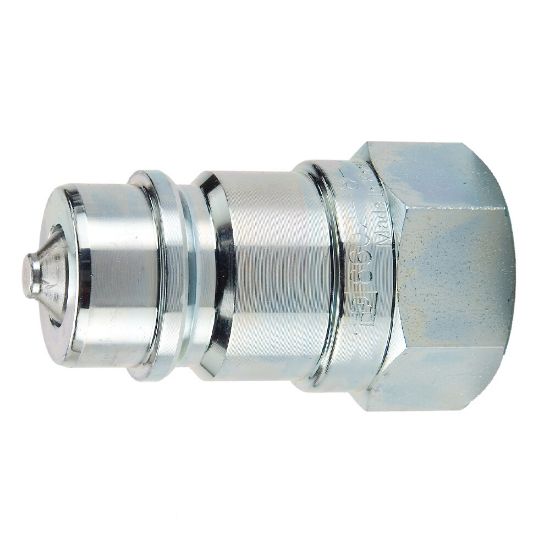

6602-2-4 - General Purpose, ISO 7241-A, Hydraulic Quick Couplings - 6600 Series

Name: 6602-2-4 - General Purpose, ISO 7241-A, Hydraulic Quick Couplings - 6600 Series
SKU: 6602-2-4
Price: 15.08 USD
Availability: InStock

Parker's hydraulic quick couplers and nipples are ideal for use in applications where fluid lines require fast and easy connection and disconnection.

Availability:

4 in stock

Kansas City, KS

Partner Available:

24 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 6602-2-4

$15.08/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Body Size (inch)	1/4	Connection Thread Size (inch)	1/8 - 27
Connection Type	Female NPTF	Minimum Operating Temperature	-40 °F
Body Material	Steel	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Plating Type	Zinc with clear trivalent chromate
Maximum Operating Pressure	5000 psi	Valve Type	Poppet
Hex Size	0.56 inch	Dimensional Weight	0.02670863309352518 lb
Flow Rate	3 Gal/min	Interchange Type	ISO 7241-1 Series A
Specifications Met	ISO 7241-1 Series A

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
