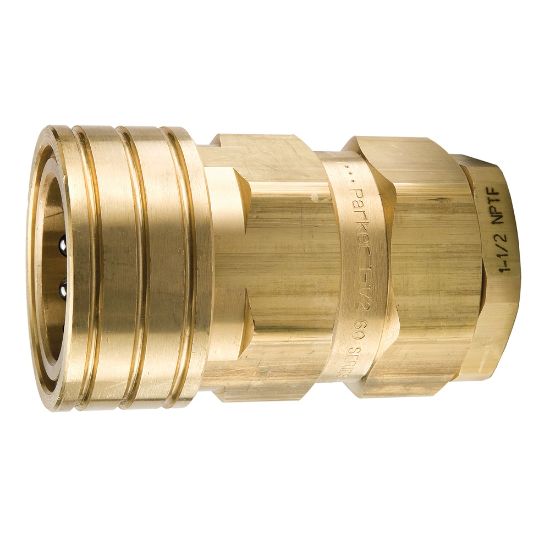

Picture of General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series - BH12-60L

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series - BH12-60L

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.
Availability:
Backordered
SKU BH12-60L
$645.26
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABody MaterialBRASS
Seal MaterialNitrileCoupling HalfFemale Coupler
Connection TypeFemale NPTFBody Size (inch)1 1/2
Maximum Operating Pressure1500ApplicationGeneral Purpose
Connection Thread Size (inch)1-1/4 - 11-1/2Minimum Operating Temperature-40 °F
Body MaterialBrassDivisionQuick Coupling Division
Product TypeManual ConnectValve TypePoppet
Maximum Operating Temperature121 °CVacuum Pressure Ratingn/a
Hex Size2.38 inchFlow Rate378 L/min
Plating Typen/aBall MaterialStainless Steel
Valve MaterialBrassSpecifications MetISO 7241-1 Series B
