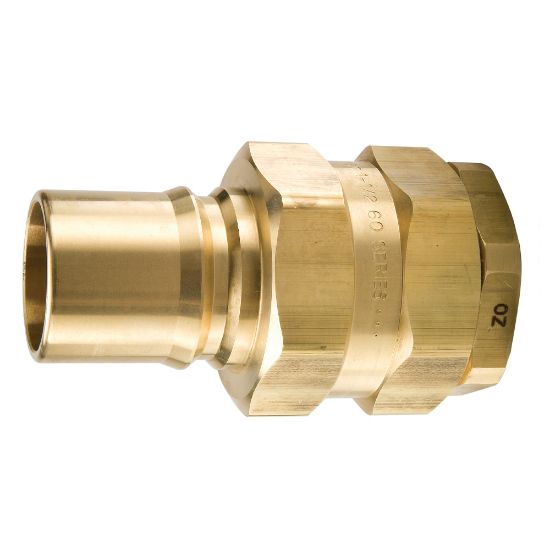

BH2016-61 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU BH2016-61

$1,590.24/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Coupling Half	Male Nipple	Seal Material	Nitrile
Connection Type	Female NPTF	Connection Thread Size (inch)	2 - 11 1/2
Body Size (inch)	2 1/2	Application	General Purpose
Maximum Operating Pressure	1200	Minimum Operating Temperature	-40 °C
Body Material	Brass	Maximum Operating Temperature	250 °F
Valve Type	Poppet	Vacuum Pressure Rating	n/a
Plating Type	n/a	Flow Rate	757 L/min
Hex Size	3.75 inch	Valve Material	Brass
Specifications Met	ISO 7241-1 Series B

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)
