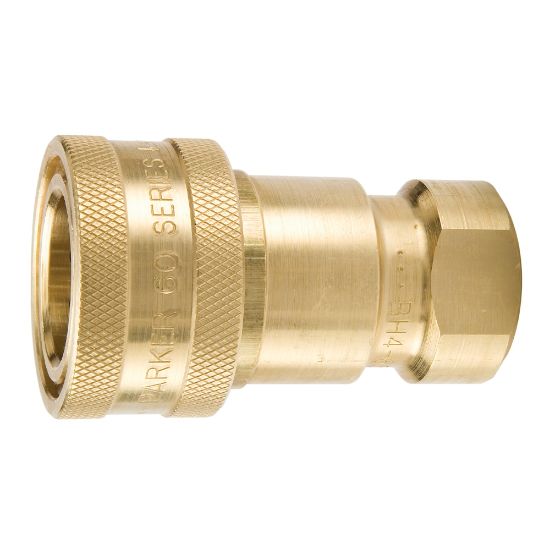

BH4-60-STM - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	1 Limited Stock

SKU BH4-60-STM

$99.61/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Female NPTF
Seal Material	Ethylene Propylene	Body Material	BRASS
Connection Thread Size (inch)	1/2 - 14	Coupling Half	Female Coupler
Application	Steam	Body Size (inch)	1/2
Maximum Operating Pressure	3500	Maximum Operating Temperature	400 °F
Specifications Met	ISO 7241-1, series B	Body Material	Brass
Valve Type	Poppet	Ball Material	Stainless Steel
Flow Rate	45 L/min	Hex Size	1.12 inch
Valve Material	Brass	Minimum Operating Temperature	-54 °C
Vacuum Pressure Rating	27.4 Inch-Hg	Plating Type	na
