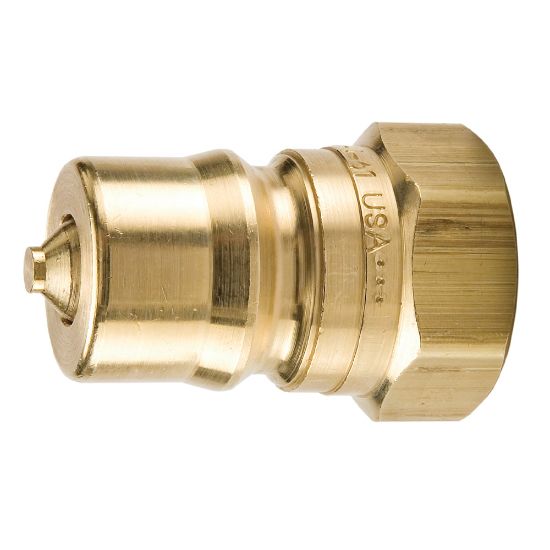

BH6-61-STM - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	2 Limited Stock

SKU BH6-61-STM

$69.58/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	2200
Seal Material	Ethylene Propylene	Coupling Half	Male Nipple
Connection Type	Female NPTF	Body Material	BRASS
Connection Thread Size (inch)	3/4 - 14	Application	Steam
Body Size (inch)	3/4	Body Material	Brass
Valve Type	Poppet	Maximum Operating Temperature	204 °C
Vacuum Pressure Rating	27.4 Inch-Hg	Plating Type	na
Valve Material	Brass	Flow Rate	106 L/min
Specifications Met	ISO 7241-1, series B	Minimum Operating Temperature	-65 °F
Hex Size	1.38 inch

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)
