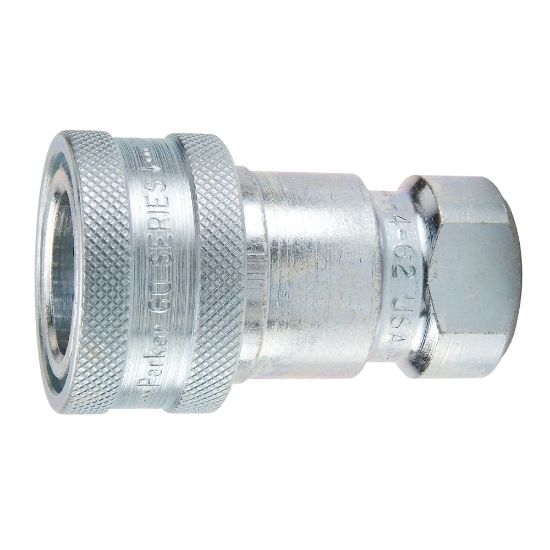

H1-62 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Name: H1-62 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series
SKU: H1-62
Price: 24.95 USD
Availability: InStock

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:

14 in stock

Decatur, IL	4
WICHITA, KS	2
Joplin, MO	2
Peoria, IL	2
Olivette, MO	2
Olivette, MO	1
Springfield, MO	1

Partner Available:

307 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU H1-62

$24.95/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	1/8 - 27
Seal Material	Nitrile	Coupling Half	Female Coupler
Maximum Operating Pressure	5000	Connection Type	Female NPTF
Body Material	Steel	Application	General Purpose
Body Size (inch)	1/8	Body Material	Steel
Minimum Operating Temperature	-40 °F	Plating Type	Zinc with clear trivalent chromate
Vacuum Pressure Rating	27.4 Inch-Hg	Specifications Met	ISO 7241-1 Series B
Valve Type	Poppet	Valve Material	Steel
Hex Size	0.68 inch	Maximum Operating Temperature	121 °C
Flow Rate	0.8 Gal/min	Ball Material	Steel
Dimensional Weight	0.02670863309352518 lb
