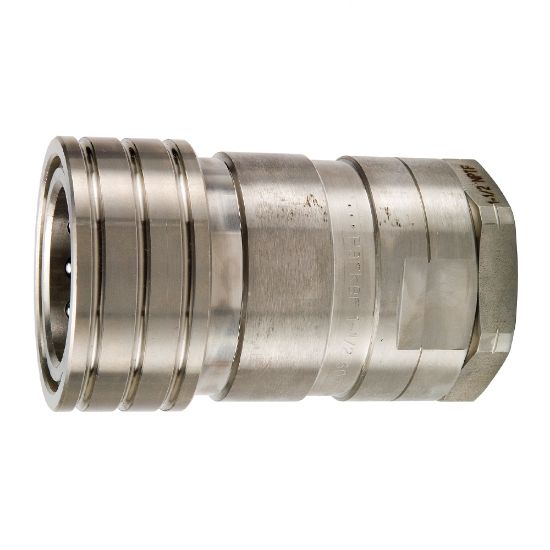

SH12-62L - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	Backordered

SKU SH12-62L

$1,218.19/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Female Coupler
Connection Type	Female NPTF	Application	General Purpose
Body Material	303 Stainless Steel	Body Size (inch)	1 1/2
Maximum Operating Pressure	1500	Seal Material	Nitrile
Connection Thread Size (inch)	1-1/4 - 11 1/2	Plating Type	n/a
Ball Material	Stainless Steel	Valve Type	Poppet
Specifications Met	ISO 7241-1 Series B	Valve Material	Stainless Steel 303
Flow Rate	378 L/min	Maximum Operating Temperature	121 °C
Minimum Operating Temperature	-40 °C	Vacuum Pressure Rating	n/a
Hex Size	2.50 inch	Body Material	Stainless Steel
