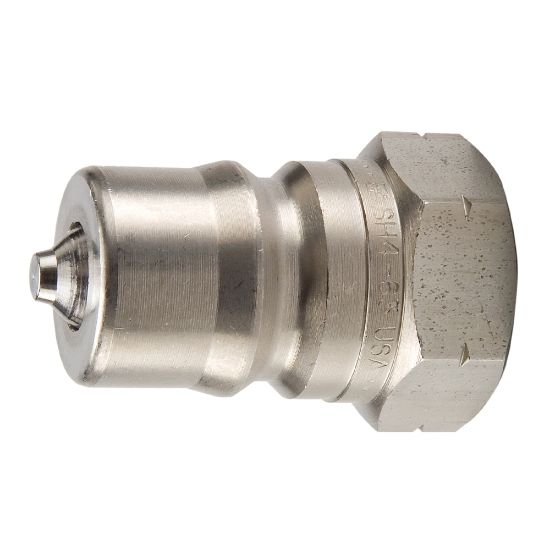

SH6-63Y - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	1 Limited Stock

SKU SH6-63Y

$145.63/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Connection Type	Female NPTF	Body Size (inch)	3/4
Coupling Half	Male Nipple	Application	General Purpose
Body Material	303 Stainless Steel	Maximum Operating Pressure	3000
Connection Thread Size (inch)	3/4 - 14	Vacuum Pressure Rating	-0.9 bar
Valve Type	Poppet	Valve Material	303 Stainless steel
Minimum Operating Temperature	-15 °F	Specifications Met	ISO 7241-1, series B
Hex Size	1.38 inch	Maximum Operating Temperature	204 °C
Flow Rate	28 Gal/min	Body Material	Stainless Steel
Plating Type	na
