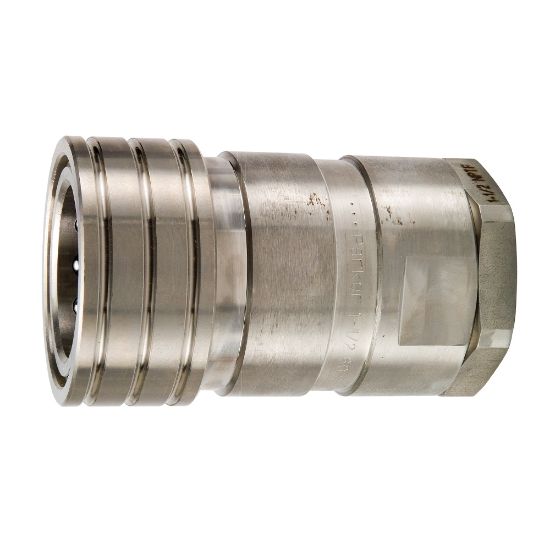

SSH2016-62Y - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Backordered Estimated Lead Time: 63 days
Partner Available:	Backordered

SKU SSH2016-62Y

$4,933.63/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	2 1/2
Connection Thread Size (inch)	2 - 11 1/2	Body Material	316 Stainless Steel
Coupling Half	Female Coupler	Seal Material	Fluorocarbon
Connection Type	Female NPTF	Application	General Purpose
Maximum Operating Pressure	1500	Vacuum Pressure Rating	n/a
Hex Size	3.75 inch	Body Material	Stainless Steel
Plating Type	n/a	Ball Material	Stainless Steel
Specifications Met	ISO 7241-1 Series B	Valve Type	Poppet
Flow Rate	200 Gal/min	Maximum Operating Temperature	400 °F
Minimum Operating Temperature	-26 °C	Valve Material	Stainless Steel 316
