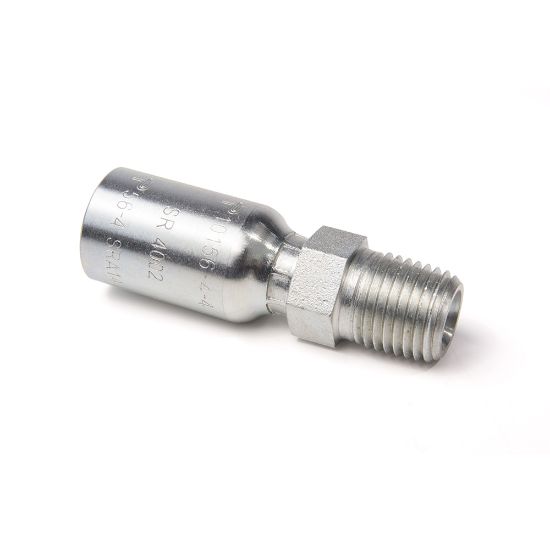

Picture of 10156-4-3 - Global Fittings - 56 Series - Inch

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

10156-4-3 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.
Availability:
24 in stock
Joplin, MO10
TOPEKA, KS8
Springfield, MO6
Partner Available:323 in stock
Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
SKU 10156-4-3
$10.12/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEALength (inch)1.82"
Product StyleMale NPTF Pipe - Rigid - StraightHose I.D. (inch)0.188"
Connection 2 Size1/4"-18Materials of ConstructionSteel
ShapeStraightCoatingChromium 6 Free-plated
Hex Size9/16 inch (see drawing legend H)IndustryOff-road Machinery
Hex Size 1n/aHex Size 2n/a
Body MaterialSteelConfigurationHose to Port
Fitting Length1.82 inch (see drawing legend A)For Fluid TypeWater
Shipping Weight0.034 kgConnection 1 Size4.8 mm Hose I.D.
Connection 1 TypeHoseConnection 2 Size1/4"-18 inch Thread
Connection 2 TypeRigidConnection Length28 mm Cut-off allowance
Tube Outside Diametern/aMaximum Operating Pressure34.5 MPa (Dependent on hose)
Dimensional Weight0.0185 lb
