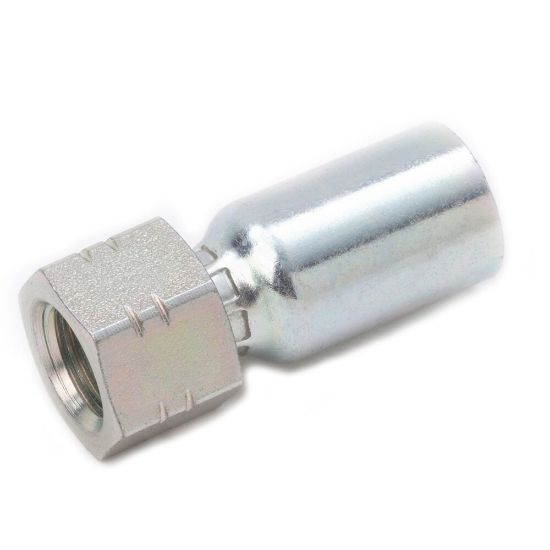

Picture of Global Fittings - 56 Series - Inch - 10256-4-4C

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Global Fittings - 56 Series - Inch - 10256-4-4C

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.
Availability:
Backordered
SKU 10256-4-4C
$101.14
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAProduct StyleFemale NPTF Pipe - Rigid - Straight
Hose I.D. (inch)0.25"Materials of ConstructionStainless Steel
Connection 2 Size1/4"-18Length (inch)1.99"
BrandPARKERDivisionParflex Division
Body MaterialStainless SteelShapeStraight
IndustryTransportationTechnologyFluid & Gas Handling
CoatingChromium 6 Free-platedDivisionParflex Division
Hex Size 1n/aConfigurationHose to Port
For Fluid TypeOilConnection 1 TypeHose
Tube Outside Diametern/aApplicationAgriculture Equipment
Hex Size11/16 inch (see drawing legend H)Hex Size 2n/a
Connection 1 Size6.35 mm Hose I.D.Connection 2 Size1/4"-18 inch Thread
Maximum Operating Pressure5000 psi (Dependent on hose)Fitting Length1.99 inch (see drawing legend A)
Shipping Weight0.108 lbConnection 2 TypeFemale
Connection Length25 mm Cut-off allowance
