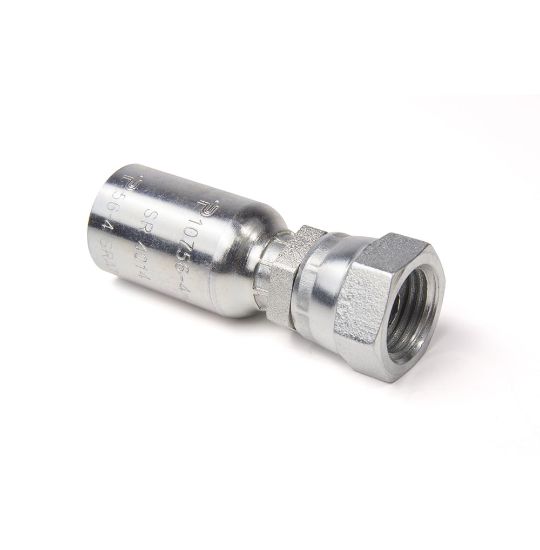

10756-8-8 - Global Fittings - 56 Series - Inch

Name: 10756-8-8 - Global Fittings - 56 Series - Inch
SKU: 10756-8-8
Price: 19.94 USD
Availability: InStock

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Availability:

7 in stock

TOPEKA, KS

Partner Available:

183 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 10756-8-8

$19.94/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	Steel
Hose I.D. (inch)	0.5"	Connection 2 Size	1/2"-14
Length (inch)	2.4"	Product Style	Female Pipe Swivel
Body Material	Steel	Shape	Straight
Coating	Chromium 6 Free-plated	Configuration	Hose to Port
Connection 1 Type	Hose	Tube Outside Diameter	n/a
Industry	Industrial Manufacturing Equipment	Hex Size	7/8 inch (see drawing legend H)
Hex Size 2	n/a	For Fluid Type	Water
Connection 1 Size	12.7 mm Hose I.D.	Connection 2 Size	1/2"-14 inch Thread
Maximum Operating Pressure	5000 psi (Dependent on hose)	Hex Size 1	1 inch (see drawing legend J)
Connection Length	33 mm Cut-off allowance	Fitting Length	2.40 inch (see drawing legend A)
Shipping Weight	0.229 lb	Connection 2 Type	Pipe
Dimensional Weight	0.0499 lb
