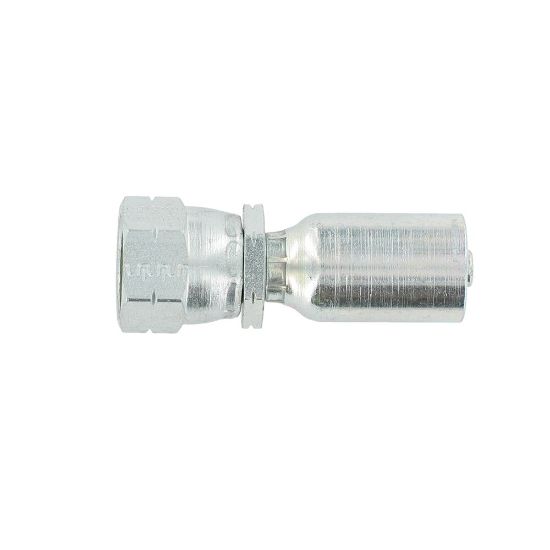

Picture of 10856-6-4 - Global Fittings - 56 Series - Inch

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

10856-6-4 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.
Availability:
4 in stock
Olivette, MO4
Partner Available:57 in stock
Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
SKU 10856-6-4
$20.20/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAMaterials of ConstructionSteel
Hose I.D. (inch)0.25"Length (inch)2.19"
Connection 2 Size5/8"-18Product StyleFemale SAE 45° - Swivel - Straight
Body MaterialSteelShapeStraight
CoatingChromium 6 Free-platedConfigurationHose to Port
For Fluid TypeHydraulic FluidsConnection 1 TypeHose
Tube Outside Diametern/aIndustryIndustrial Manufacturing Equipment
Hex Size11/16 inch (see drawing legend H)Hex Size 2n/a
Connection 1 Size6.35 mm Hose I.D.Maximum Operating Pressure5000 psi (Dependent on hose)
Dimensional Weight0.0235 lbFitting Length2.19 inch (see drawing legend A)
Connection 2 TypeFemaleConnection 2 Size5/8"-18 inch Thread
Connection Length32 mm Cut-off allowanceHex Size 13/4 inch (see drawing legend J)
Shipping Weight0.112 lb
