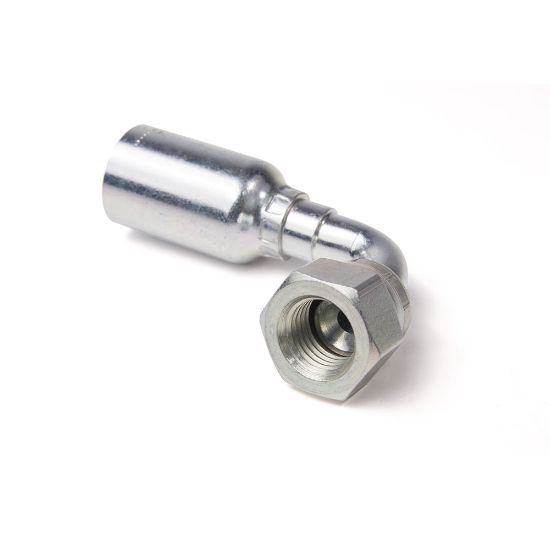

13956-4-4 - Global Fittings - 56 Series - Inch

Name: 13956-4-4 - Global Fittings - 56 Series - Inch
SKU: 13956-4-4
Price: 21.81 USD
Availability: InStock

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Availability:

82 in stock

Springfield, MO	28
Olivette, MO	18
Wichita, KS	10
Kansas City, KS	10
TOPEKA, KS	5
COLUMBIA, MO	4
Peoria, IL	4
Joplin, MO	3

Partner Available:

697 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 13956-4-4

$21.81/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	Steel
Hose I.D. (inch)	0.25"	Length (inch)	2.19"
Connection 2 Size	7/16"-20	Product Style	Female JIC 37° - Swivel - 90° Elbow - Short Drop
Body Material	Steel	Coating	Chromium 6 Free-plated
Hex Size	n/a	Configuration	Hose to Port
Connection 1 Type	Hose	Tube Outside Diameter	n/a
Industry	Off-road Machinery	Hex Size 2	n/a
For Fluid Type	Water	Maximum Operating Pressure	34.5 MPa (Dependent on hose)
Connection 1 Size	1/4 inch Hose I.D.	Dimensional Weight	0.0252 lb
Connection 2 Size	7/16"-20 inch Thread	Connection 2 Type	JIC 37°
Hex Size 1	9/16 inch (see drawing legend J)	Connection Length	1-1/16 inch Cut-off allowance
Shipping Weight	0.044 kg	Shape	Elbow 90° Short Drop
Fitting Length	51 mm (see drawing legend A)
