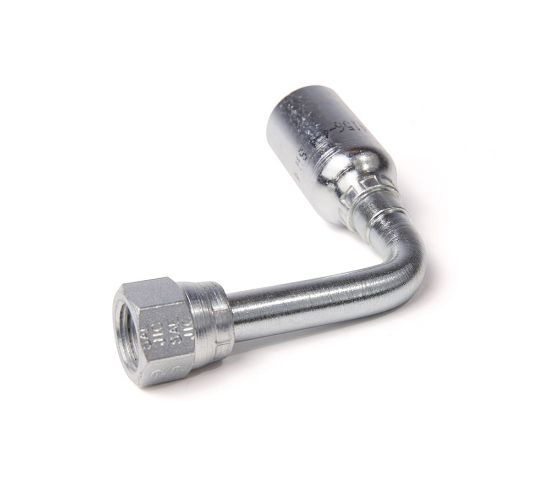

Picture of 14156-4-3 - Global Fittings - 56 Series - Inch

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

14156-4-3 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.
Availability:
27 in stock
TOPEKA, KS25
Kansas City, KS2
Partner Available:3 in stock
Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
SKU 14156-4-3
$33.74/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAMaterials of ConstructionSteel
Hose I.D. (inch)0.188"Connection 2 Size7/16"-20
Length (inch)1.73"Product StyleFemale JIC 37° - Swivel - 90° Elbow - Long Drop
Body MaterialSteelCoatingChromium 6 Free-plated
Hex Sizen/aConfigurationHose to Port
For Fluid TypeHydraulic FluidsConnection 1 TypeHose
Tube Outside Diametern/aIndustryIndustrial Manufacturing Equipment
Hex Size 2n/aMaximum Operating Pressure5000 psi (Dependent on hose)
Connection 1 Size3/16 inch Hose I.D.Connection 2 TypeFemale
Connection 2 Size7/16"-20 inch ThreadConnection Length1-5/16 inch Cut-off allowance
Hex Size 19/16 inch (see drawing legend J)Shipping Weight0.046 kg
Fitting Length51 mm (see drawing legend A)ShapeElbow 90° Long Drop
Dimensional Weight0.0543 lb
