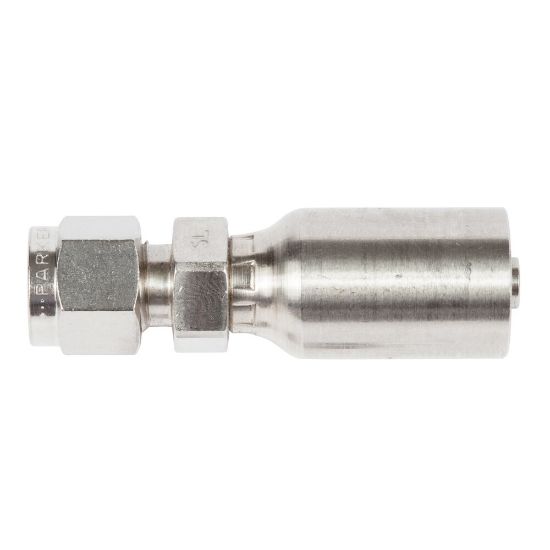

Picture of 1AL56-6-6C - Global Fittings - 56 Series - Inch

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

1AL56-6-6C - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.
Availability:
Backordered
Estimated Lead Time: 14 days
Partner Available:Backordered
SKU 1AL56-6-6C
$140.12/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAProduct StyleFemale A-Lok® Compression
Materials of ConstructionStainless SteelHose I.D. (inch)0.375"
Length (inch)2.09"Connection 2 Size9/16"-20
Body MaterialStainless SteelShapeStraight
Hex Size 1n/aConfigurationHose to Port
For Fluid TypeOilConnection 1 TypeHose
Tube Outside Diametern/aIndustryIndustrial Manufacturing Equipment
Hex Size11/16 inch (see drawing legend H)Hex Size 2n/a
Connection 1 Size3/8 inch Hose I.D.Maximum Operating Pressure5000 psi (Dependent on hose)
Connection 2 TypeFemaleFitting Length9.5 mm (see drawing legend A)
Shipping Weight0.154 lbConnection 2 Size9/16"-20 inch Thread
Connection Length2.09 inch Cut-off allowance
