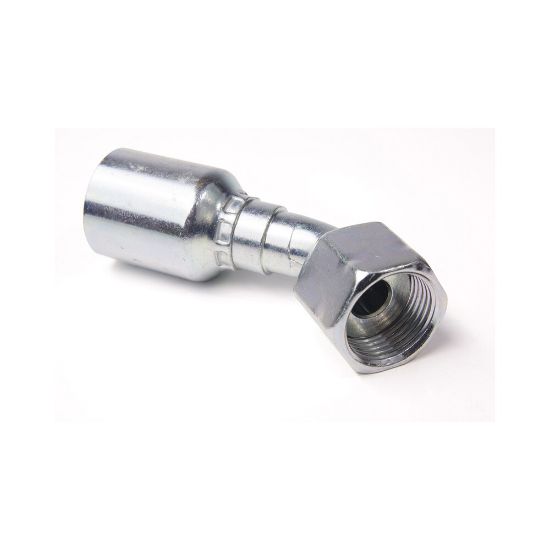

1J256-8-8 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU 1J256-8-8

$338.35/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	Steel
Hose I.D. (inch)	0.5"	Length (inch)	2.84"
Connection 2 Size	13/16"-16	Product Style	Female Seal-Lok - Swivel - 30° Elbow
Body Material	Steel	Coating	Chromium 6 Free-plated
Hex Size	n/a	Configuration	Hose to Port
For Fluid Type	Oil	Connection 1 Type	Hose
Tube Outside Diameter	n/a	Industry	Off-road Machinery
Hex Size 2	n/a	Connection 1 Size	12.7 mm Hose I.D.
Maximum Operating Pressure	34.5 MPa (Dependent on hose)	Dimensional Weight	0.0522 lb
Connection 2 Type	Swivel	Hex Size 1	15/16 inch (see drawing legend J)
Shape	Elbow 30°	Connection 2 Size	13/16"-16 inch Thread
Fitting Length	72 mm (see drawing legend A)	Shipping Weight	0.096 kg
Connection Length	43 mm Cut-off allowance
