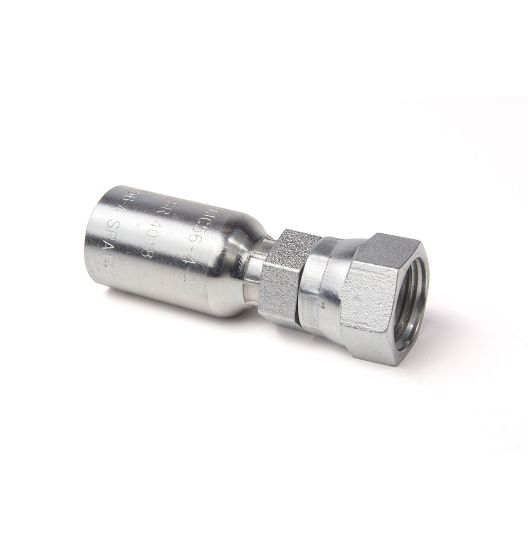

Picture of 1JC56-4-2 - Global Fittings - 56 Series - Inch

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

1JC56-4-2 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.
Availability:
Backordered
Estimated Lead Time: 14 days
Partner Available:108 in stock
SKU 1JC56-4-2
$26.98/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAMaterials of ConstructionSteel
Product StyleFemale Seal-Lok - Swivel - Straight - ShortHose I.D. (inch)0.125"
Connection 2 Size9/16"-18Length (inch)1.34"
Body MaterialSteelCoatingChromium 6 Free-plated
ConfigurationHose to PortConnection 1 TypeHose
Tube Outside Diametern/aIndustryIndustrial Manufacturing Equipment
Hex Size5/8 inch (see drawing legend H)Hex Size 2n/a
Fitting Length34 mm (see drawing legend A)For Fluid TypeAir (Pneumatic Media)
Maximum Operating Pressure34.5 MPa (Dependent on hose)Connection 1 Size1/8 inch Hose I.D.
Dimensional Weight0.0106 lbConnection 2 TypeFemale
Connection 2 Size9/16"-18 inch ThreadShipping Weight0.09 lb
Hex Size 111/16 inch (see drawing legend J)ShapeStraight Short
Connection Length3/4 inch Cut-off allowance
