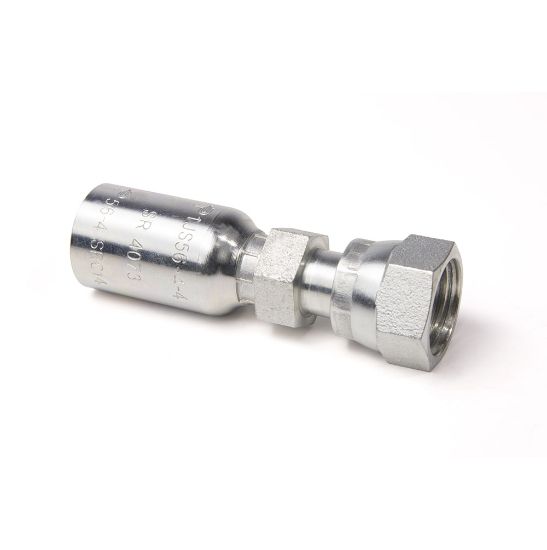

Picture of 1JS56-8-8 - Global Fittings - 56 Series - Inch

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

1JS56-8-8 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.
Availability:
37 in stock
Springfield, MO11
TOPEKA, KS9
Olivette, MO5
Decatur, IL5
Kansas City, KS2
COLUMBIA, MO2
Joplin, MO2
Peoria, IL1
Partner Available:340 in stock
Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
SKU 1JS56-8-8
$26.84/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAMaterials of ConstructionSteel
Hose I.D. (inch)0.5"Length (inch)2.52"
Connection 2 Size13/16"-16Product StyleFemale Seal-Lok - Swivel - Straight - Long
Body MaterialSteelCoatingChromium 6 Free-plated
ConfigurationHose to PortConnection 1 TypeHose
Tube Outside Diametern/aIndustryIndustrial Manufacturing Equipment
Hex Size11/16 inch (see drawing legend H)Hex Size 2n/a
For Fluid TypeAir (Pneumatic Media)Connection 1 Size1/2 inch Hose I.D.
Maximum Operating Pressure5000 psi (Dependent on hose)Connection 2 TypeFemale
Connection Length1-3/8 inch Cut-off allowanceDimensional Weight0.0548 lb
Hex Size 115/16 inch (see drawing legend J)ShapeStraight Long
Connection 2 Size13/16"-16 inch ThreadFitting Length2.52 inch (see drawing legend A)
Shipping Weight0.113 kg
