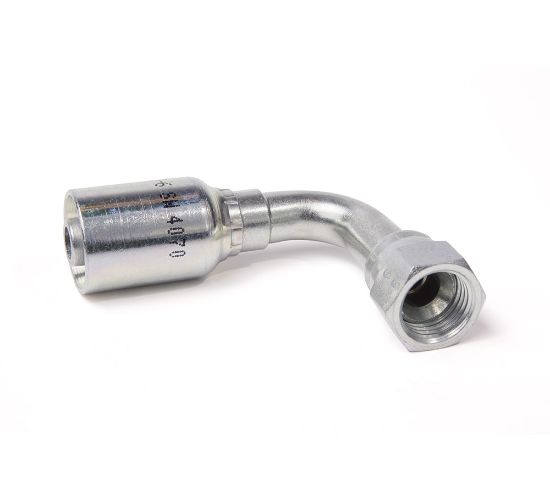

1L956-8-6 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	14 in stock

SKU 1L956-8-6

$41.62/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Materials of Construction	Steel
Hose I.D. (inch)	0.375"	Length (inch)	2.22"
Connection 2 Size	3/4"-16	Product Style	Female JIC 37° - Swivel - 90° Elbow - Medium Drop
Body Material	Steel	Industry	Transportation
Coating	Chromium 6 Free-plated	Hex Size	n/a
Configuration	Hose to Port	For Fluid Type	Hydraulic Fluids
Connection 1 Type	Hose	Tube Outside Diameter	n/a
Hex Size 2	n/a	Connection 1 Size	9.5 mm Hose I.D.
Maximum Operating Pressure	34.5 MPa (Dependent on hose)	Dimensional Weight	0.1177 lb
Connection 2 Size	3/4"-16 inch Thread	Connection 2 Type	JIC 37°
Hex Size 1	7/8 inch (see drawing legend J)	Connection Length	1-7/16 inch Cut-off allowance
Shape	Elbow 90° Medium Drop	Fitting Length	2.44 inch (see drawing legend A)
Shipping Weight	0.092 kg
