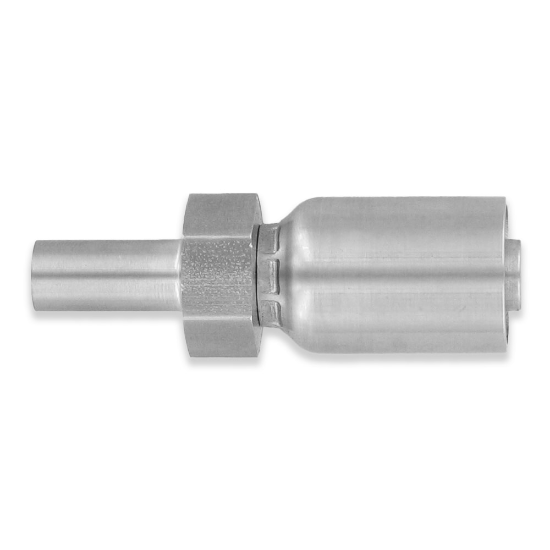

1TU56-4-4C - Global Fittings - 56 Series - Inch

Name: 1TU56-4-4C - Global Fittings - 56 Series - Inch
SKU: 1TU56-4-4C
Price: 123.71 USD
Availability: InStock

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Availability:

20 in stock

Decatur, IL

Partner Available:

8 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 1TU56-4-4C

$123.71/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	0.25"
Materials of Construction	Stainless Steel	Length (inch)	2.35"
Product Style	Universal Tube Stub	Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
Body Material	Stainless Steel	Hex Size 1	n/a
Configuration	Hose to Port	Connection 1 Type	Hose
Tube Outside Diameter	n/a	Industry	Off-road Machinery
Hex Size 2	n/a	For Fluid Type	Water
Maximum Operating Pressure	5000 psi (Dependent on hose)	Hex Size	11/16 inch (see drawing legend J)
Connection 1 Size	1/4 inch Hose I.D.	Connection Length	35 mm Cut-off allowance
Fitting Length	2.35 inch (see drawing legend A)	Shape	Straight Universal Inch
Connection 2 Size	0.25 inch Diameter (see drawing legend R)	Connection 2 Type	Stub End
Shipping Weight	0.088 lb	Dimensional Weight	0.0223 lb
