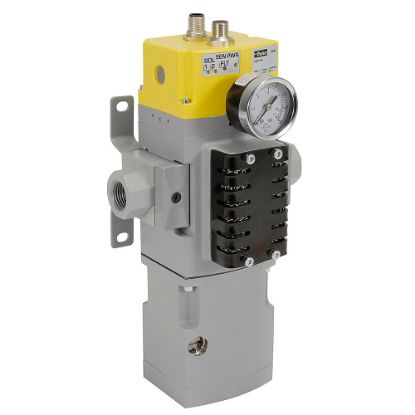

Global FRL Valves (Safety Exhaust)
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The P33 family of global redundant safety exhaust valves are designed to rapidly exhaust compressed air in the event of a fault condition and provide monitored coverage. These 3/2 normally closed, two channel valves are designed for a failsafe operation. This product meets the highest safety standards for applications up to and including Category 4, PL e. When applications demand a safe environment, you can count on safety valves from Parker Hannifin.
Markets:
• General Industrial
• Packaging
• Automotive
Features/Benefits:
• Designed to be applied to machinery, to exhaust trapped air during an e-stop or fault condition.
• Allows the machinery to achieve a safe state without trapped residual energy.
• Available with an adjustable soft start to allow a gradual introduction of pressure into machinery on start up.
• Two channel design means redundancy for maximum safety
• Solid state pressure sensors provide accurate and reliable fault condition monitoring
• M12 connectors for solenoids and sensors makes the product easy to install
Applications:
• Pneumatic Safety Systems (up to Category 4 / performance level ‘e')
Conforms to:
• International standards: complies with the Machinery Directive and standards EN ISO 13849-1 and EN ISO 13849-2 for Safety Related Parts of a Control Circuit.
| Action | SKU | Availability | Partner Available | Price | UOM | Port Type | Solenoid Connection | Sensor Connection | Options | Pressure Gauge | Product Style | Port Size | Length | Body Material | Flow Rate | Maximum Operating Pressure | Industry | Specifications Met | Port Size | Port Type | Minimum Operating Pressure | Electrical Connection | Seal Material | Mounting Type | Height | Weight | Input Voltage | Product Style | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P33DB96CAEN | Backordered | Backordered | $1,205.24/each | EA | [B9] - NPTF | [C] - M12 pins: 3 & 4 for bipolar outputs | [A] - M12 pins: 1&2, 1&4, common 3 | Black Grill | [EN] - None | [P33D] - Without Soft Start | [6] - 3/4 inch | 4.3 inch | Cast Aluminum | up to 7500 L/min | 150 psig | General Industry<br>Automotive<br>Packaging | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 3/4 inch | NPT<br>BSPP | 2 barg | Two M12 connections | NBR | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 17.87 cm | 4.2 lb | 24V DC | Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>Without Soft Start | 3/2 Normally-Closed | |
| P33DB96CBEN | Backordered | Backordered | $1,205.24/each | EA | [B9] - NPTF | [C] - M12 pins: 3 & 4 for bipolar outputs | [B] - M12 pins: 1&2, 5&4, common 3 | Black Grill | [EN] - None | [P33D] - Without Soft Start | [6] - 3/4 inch | 4.3 inch | Cast Aluminum | up to 265 SCFM | 30 barg | General Industry<br>Automotive<br>Packaging | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 3/4 inch | NPT<br>BSPP | 2 barg | Two M12 connections | NBR | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 17.87 cm | 1.9 kg | 24V DC | Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>Without Soft Start | 3/2 Normally-Closed | |
| P33DB96CCED | Backordered | Backordered | $1,253.20/each | EA | [B9] - NPTF | [C] - M12 pins: 3 & 4 for bipolar outputs | [C] - M12 pins: 5&2, 1&4, common 3 | Black Grill | [ED] - Digital Gauge | [P33D] - Without Soft Start | [6] - 3/4 inch | 10.93 | Cast Aluminum | ≤ 265 | 150 | General Industry | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 3/4 | NPT | 10 | M12 (x2) | Nitrile Butadiene Rubber (NBR) | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 17.87 | 1.9 | 24 | Electro-Pneumatic (Solenoid Actuated) | 3/2 Normally-Closed | |
| P33DB96CCEG | Backordered | Backordered | $1,223.33/each | EA | [B9] - NPTF | [C] - M12 pins: 3 & 4 for bipolar outputs | [C] - M12 pins: 5&2, 1&4, common 3 | Black Grill | [EG] - Standard Dial Gauge | [P33D] - Without Soft Start | [6] - 3/4 inch | 10.93 | Cast Aluminum | ≤ 265 | 150 | General Industry | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 3/4 | NPT | 10 | M12 (x2) | Nitrile Butadiene Rubber (NBR) | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 17.87 | 1.9 | 24 | Electro-Pneumatic (Solenoid Actuated) | 3/2 Normally-Closed | |
| P33DB96CCEN | Backordered | Backordered | $1,205.24/each | EA | [B9] - NPTF | [C] - M12 pins: 3 & 4 for bipolar outputs | [C] - M12 pins: 5&2, 1&4, common 3 | Black Grill | [EN] - None | [P33D] - Without Soft Start | [6] - 3/4 inch | 10.93 | Cast Aluminum | ≤ 265 | 150 | General Industry | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 3/4 | NPT | 10 | M12 (x2) | Nitrile Butadiene Rubber (NBR) | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 17.87 | 1.9 | 24 | Electro-Pneumatic (Solenoid Actuated) | 3/2 Normally-Closed | |
| P33DB96DAED | Backordered | Backordered | $1,253.20/each | EA | [B9] - NPTF | [D] - M12 pins: 2 & 4 for bipolar outputs | [A] - M12 pins: 1&2, 1&4, common 3 | Black Grill | [ED] - Digital Gauge | [P33D] - Without Soft Start | [6] - 3/4 inch | 4.3 inch | Cast Aluminum | up to 265 SCFM | 30 barg | General Industry<br>Automotive<br>Packaging | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 3/4 inch | NPT<br>BSPP | 2 barg | Two M12 connections | NBR | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 7.03 inch | 1.9 kg | 24V DC | Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>Without Soft Start | 3/2 Normally-Closed | |
| P33DB96DAEG | Backordered | Backordered | $1,223.33/each | EA | [B9] - NPTF | [D] - M12 pins: 2 & 4 for bipolar outputs | [A] - M12 pins: 1&2, 1&4, common 3 | Black Grill | [EG] - Standard Dial Gauge | [P33D] - Without Soft Start | [6] - 3/4 inch | 4.3 inch | Cast Aluminum | up to 265 SCFM | 150 psig | General Industry<br>Automotive<br>Packaging | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 3/4 inch | NPT<br>BSPP | 2 barg | Two M12 connections | NBR | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 17.87 cm | 4.2 lb | 24V DC | Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>Without Soft Start | 3/2 Normally-Closed | |
| P33DB96DAEM | Backordered | Backordered | $1,479.82/each | EA | [B9] - NPTF | [D] - M12 pins: 2 & 4 for bipolar outputs | [A] - M12 pins: 1&2, 1&4, common 3 | Black Grill | [EM] - MPS-P34 pressure sensor | [P33D] - Without Soft Start | [6] - 3/4 inch | 10.93 cm | Cast Aluminum | up to 265 SCFM | 30 barg | General Industry<br>Automotive<br>Packaging | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 3/4 inch | NPT<br>BSPP | 2 barg | Two M12 connections | NBR | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 17.87 cm | 4.2 lb | 24V DC | Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>Without Soft Start | 3/2 Normally-Closed | |
| P33DB96DAEN | Backordered | Backordered | $1,205.24/each | EA | [B9] - NPTF | [D] - M12 pins: 2 & 4 for bipolar outputs | [A] - M12 pins: 1&2, 1&4, common 3 | Black Grill | [EN] - None | [P33D] - Without Soft Start | [6] - 3/4 inch | 10.93 cm | Cast Aluminum | up to 7500 L/min | 30 barg | General Industry<br>Automotive<br>Packaging | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 3/4 inch | NPT<br>BSPP | 10 psig | Two M12 connections | NBR | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 17.87 cm | 4.2 lb | 24V DC | Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>Without Soft Start | 3/2 Normally-Closed | |
| P33DB96DBED | Backordered | Backordered | $1,253.20/each | EA | [B9] - NPTF | [D] - M12 pins: 2 & 4 for bipolar outputs | [B] - M12 pins: 1&2, 5&4, common 3 | Black Grill | [ED] - Digital Gauge | [P33D] - Without Soft Start | [6] - 3/4 inch | 10.93 | Cast Aluminum | ≤ 265 | 150 | General Industry | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 3/4 | NPT | 10 | M12 (x2) | Nitrile Butadiene Rubber (NBR) | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 17.87 | 1.9 | 24 | Electro-Pneumatic (Solenoid Actuated) | 3/2 Normally-Closed | |
| P33DB96DBEG | Backordered | Backordered | $1,223.33/each | EA | [B9] - NPTF | [D] - M12 pins: 2 & 4 for bipolar outputs | [B] - M12 pins: 1&2, 5&4, common 3 | Black Grill | [EG] - Standard Dial Gauge | [P33D] - Without Soft Start | [6] - 3/4 inch | 10.93 cm | Cast Aluminum | up to 7500 L/min | 150 psig | General Industry<br>Automotive<br>Packaging | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 3/4 inch | NPT<br>BSPP | 2 barg | Two M12 connections | NBR | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 7.03 inch | 4.2 lb | 24V DC | Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>Without Soft Start | 3/2 Normally-Closed | |
| P33DB96DBEM | Backordered | Backordered | $1,479.82/each | EA | [B9] - NPTF | [D] - M12 pins: 2 & 4 for bipolar outputs | [B] - M12 pins: 1&2, 5&4, common 3 | Black Grill | [EM] - MPS-P34 pressure sensor | [P33D] - Without Soft Start | [6] - 3/4 inch | 4.3 inch | Cast Aluminum | up to 265 SCFM | 150 psig | General Industry<br>Automotive<br>Packaging | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 3/4 inch | NPT<br>BSPP | 2 barg | Two M12 connections | NBR | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 7.03 inch | 1.9 kg | 24V DC | Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>Without Soft Start | 3/2 Normally-Closed | |
| P33DB96DBEN | Backordered | Backordered | $1,205.24/each | EA | [B9] - NPTF | [D] - M12 pins: 2 & 4 for bipolar outputs | [B] - M12 pins: 1&2, 5&4, common 3 | Black Grill | [EN] - None | [P33D] - Without Soft Start | [6] - 3/4 inch | 10.93 | Cast Aluminum | ≤ 265 | 150 | General Industry | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 3/4 | NPT | 10 | M12 (x2) | Nitrile Butadiene Rubber (NBR) | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 17.87 | 1.9 | 24 | Electro-Pneumatic (Solenoid Actuated) | 3/2 Normally-Closed | |
| P33DB96DCED | Backordered | Backordered | $1,253.20/each | EA | [B9] - NPTF | [D] - M12 pins: 2 & 4 for bipolar outputs | [C] - M12 pins: 5&2, 1&4, common 3 | Black Grill | [ED] - Digital Gauge | [P33D] - Without Soft Start | [6] - 3/4 inch | 10.93 | Cast Aluminum | ≤ 265 | 150 | General Industry | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 3/4 | NPT | 10 | M12 (x2) | Nitrile Butadiene Rubber (NBR) | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 17.87 | 1.9 | 24 | Electro-Pneumatic (Solenoid Actuated) | 3/2 Normally-Closed | |
| P33DB96DCEG | Backordered | Backordered | $1,223.33/each | EA | [B9] - NPTF | [D] - M12 pins: 2 & 4 for bipolar outputs | [C] - M12 pins: 5&2, 1&4, common 3 | Black Grill | [EG] - Standard Dial Gauge | [P33D] - Without Soft Start | [6] - 3/4 inch | 10.93 | Cast Aluminum | ≤ 265 | 150 | General Industry | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 3/4 | NPT | 10 | M12 (x2) | Nitrile Butadiene Rubber (NBR) | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 17.87 | 1.9 | 24 | Electro-Pneumatic (Solenoid Actuated) | 3/2 Normally-Closed | |
| P33DB96DCEM | Backordered | Backordered | $1,479.82/each | EA | [B9] - NPTF | [D] - M12 pins: 2 & 4 for bipolar outputs | [C] - M12 pins: 5&2, 1&4, common 3 | Black Grill | [EM] - MPS-P34 pressure sensor | [P33D] - Without Soft Start | [6] - 3/4 inch | 4.3 inch | Cast Aluminum | up to 7500 L/min | 30 barg | General Industry<br>Automotive<br>Packaging | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 3/4 inch | NPT<br>BSPP | 10 psig | Two M12 connections | NBR | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 7.03 inch | 4.2 lb | 24V DC | Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>Without Soft Start | 3/2 Normally-Closed | |
| P33DB96DCEN | Backordered | Backordered | $1,205.24/each | EA | [B9] - NPTF | [D] - M12 pins: 2 & 4 for bipolar outputs | [C] - M12 pins: 5&2, 1&4, common 3 | Black Grill | [EN] - None | [P33D] - Without Soft Start | [6] - 3/4 inch | 10.93 | Cast Aluminum | ≤ 265 | 150 | General Industry | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 3/4 | NPT | 10 | M12 (x2) | Nitrile Butadiene Rubber (NBR) | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 17.87 | 1.9 | 24 | Electro-Pneumatic (Solenoid Actuated) | 3/2 Normally-Closed | |
| P33TB16AAEM | Backordered | Backordered | $1,760.42/each | EA | [B1] - BSPP "G" | [A] - M12 pins: 2 & 4 with common 3 | [A] - M12 pins: 1&2, 1&4, common 3 | Black Grill | [EM] - MPS-P34 pressure sensor | [P33T] - With Soft Start | [6] - 3/4 inch | 4.3 inch | Cast Aluminum | up to 265 SCFM | 30 barg | General Industry<br>Automotive<br>Packaging | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 3/4 inch | NPT<br>BSPP | 10 psig | Two M12 connections | NBR | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 10.31 inch | 6.5 lb | 24V DC | Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>With Soft Start | 3/2 Normally-Closed | |
| P33TB16AAEN | Backordered | Backordered | $1,485.84/each | EA | [B1] - BSPP "G" | [A] - M12 pins: 2 & 4 with common 3 | [A] - M12 pins: 1&2, 1&4, common 3 | Black Grill | [EN] - None | [P33T] - With Soft Start | [6] - 3/4 inch | 10.93 cm | Cast Aluminum | up to 125 dm3/sec | 150 psig | General Industry<br>Automotive<br>Packaging | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 3/4 inch | NPT<br>BSPP | 10 psig | Two M12 connections | NBR | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 26.19 cm | 2.9 kg | 24V DC | Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>With Soft Start | 3/2 Normally-Closed | |
| P33TB16ABEM | Backordered | Backordered | $1,760.42/each | EA | [B1] - BSPP "G" | [A] - M12 pins: 2 & 4 with common 3 | [B] - M12 pins: 1&2, 5&4, common 3 | Black Grill | [EM] - MPS-P34 pressure sensor | [P33T] - With Soft Start | [6] - 3/4 inch | 10.93 cm | Cast Aluminum | up to 265 SCFM | 30 barg | General Industry<br>Automotive<br>Packaging | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 3/4 inch | NPT<br>BSPP | 10 psig | Two M12 connections | NBR | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 10.31 inch | 2.9 kg | 24V DC | Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>With Soft Start | 3/2 Normally-Closed |
