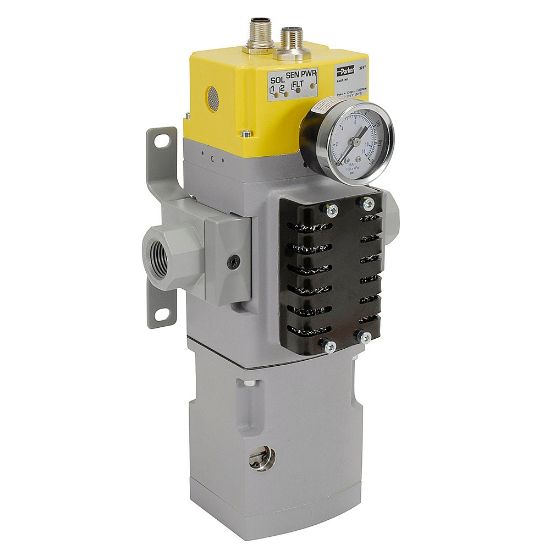

Global FRL Valves (Safety Exhaust) - P33DB96AAEM

Name: Global FRL Valves (Safety Exhaust) - P33DB96AAEM
SKU: P33DB96AAEM

The P33 Safety Exhaust valve is designed to safely remove trapped air from machinery bringing machinery to a safe state. This product is externally monitored and designed for two channel safety architecture up to Category 4, Performance level e.

Availability:

Backordered

SKU P33DB96AAEM

$1,479.82

Products specifications

Attribute name	Attribute value
UOM	EA	Sensor Connection	[A] - M12 pins: 1&2, 1&4, common 3
Solenoid Connection	[A] - M12 pins: 2 & 4 with common 3	Pressure Gauge	[EM] - MPS-P34 pressure sensor
Options	Black Grill	Product Style	[P33D] - Without Soft Start
Port Size	[6] - 3/4 inch	Port Type	[B9] - NPTF
Specifications Met	Category 4, Performance Level e per EN ISO 13849-1 (pending)	Width	8 cm
Flow Rate	up to 265 SCFM	Port Size	3/4 inch
Port Type	NPT<br>BSPP	Application	Pneumatic Safety Systems (up to Category 4 / performance level ‘e’)
Maximum Operating Pressure	30 barg	Operating Temperature	4° to 50° °C
Electrical Connection	Two M12 connections	Seal Material	NBR
Minimum Operating Pressure	10 psig	Length	10.93 cm
Mounting Type	Inline / Stand-Alone or Modular Mount (on P32/P33 FRL)	Input Voltage	24V DC
Function	3/2 Normally-Closed	Division	Pneumatic Division
Technology	Pneumatics	Product Style	Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>Without Soft Start
Height	7.03 inch	Body Material	Cast Aluminum
Product Type	Safety Exhaust Valve	Weight	1.9 kg
Brand	PARKER	Industry	General Industry<br>Automotive<br>Packaging
