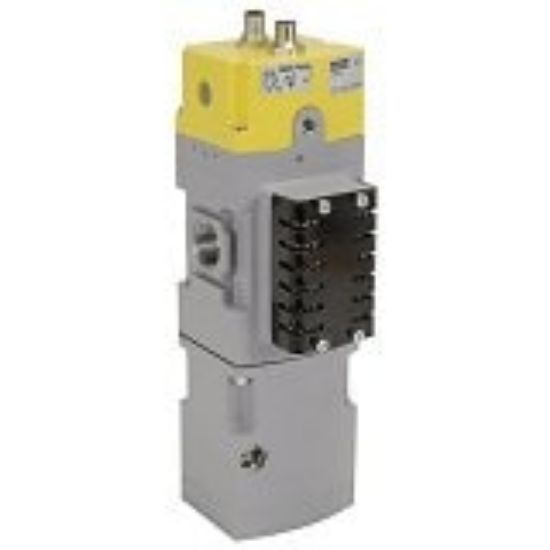

Global FRL Valves (Safety Exhaust) - P33TB96DBEN

Name: Global FRL Valves (Safety Exhaust) - P33TB96DBEN
SKU: P33TB96DBEN

The P33 Safety Exhaust valve is designed to safely remove trapped air from machinery bringing machinery to a safe state. This product is externally monitored and designed for two channel safety architecture up to Category 4, Performance level e.

Availability:

Backordered

SKU P33TB96DBEN

$1,485.84

Products specifications

Attribute name	Attribute value
UOM	EA	Options	Black Grill
Port Size	[6] - 3/4 inch	Pressure Gauge	[EN] - None
Solenoid Connection	[D] - M12 pins: 2 & 4 for bipolar outputs	Port Type	[B9] - NPTF
Product Style	[P33T] - With Soft Start	Sensor Connection	[B] - M12 pins: 1&2, 5&4, common 3
Seal Material	NBR	Flow Rate	up to 125 dm3/sec
Electrical Connection	Two M12 connections	Minimum Operating Pressure	10 psig
Length	10.93 cm	Weight	6.5 lb
Mounting Type	Inline / Stand-Alone or Modular Mount (on P32/P33 FRL)	Input Voltage	24V DC
Division	Pneumatic Division	Technology	Pneumatics
Product Style	Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>With Soft Start	Function	3/2 Normally-Closed
Height	10.31 inch	Industry	General Industry<br>Automotive<br>Packaging
Width	3.15 inch	Brand	PARKER
Operating Temperature	40° to 120° °F	Product Type	Safety Exhaust Valve
Port Size	3/4 inch	Specifications Met	Category 4, Performance Level e per EN ISO 13849-1 (pending)
Application	Pneumatic Safety Systems (up to Category 4 / performance level ‘e’)	Port Type	NPT<br>BSPP
Body Material	Cast Aluminum	Maximum Operating Pressure	30 barg
