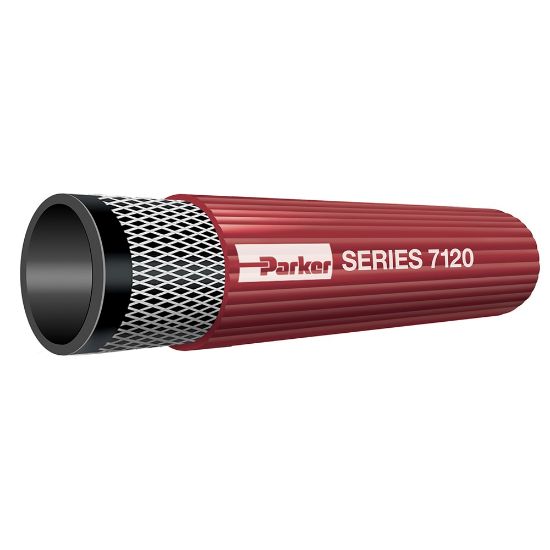

7120-19200 - Grade R Single Line Fuel Gas Welding Hose, Series 7120

Note: This product is no longer available - please contact us for further assistance

Availability:	Backordered Estimated Lead Time: 118 days
Partner Available:	Backordered

SKU 7120-19200

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/16
Maximum Working Pressure (psi)	200	Minimum Operating Temperature	-40 °C
Weight	0.08 lb/ft	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Cover Color	Red	Maximum Operating Temperature	200 °F
Minimum Bend Radius	50.8 mm	Inside Diameter	4.8 mm
Hose Reinforcement Material	2 Plies of Textile	Package Type	Reel
Hose Inner Tube Material	Black	Cover Structure	Longitudinal Ribs
Outside Diameter	11.1 mm	Maximum Operating Pressure	13.8 bar
Media	Acetylene	Specifications Met	ARPM IP-7
Length per Package	800 ft
