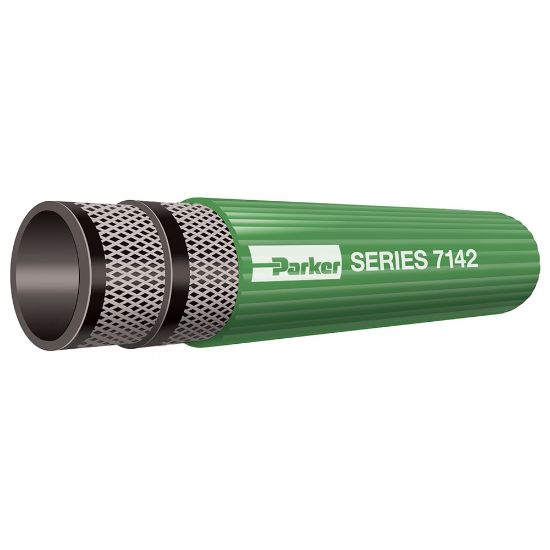

Picture of Grade T Single Line Oxygen Welding Hose, Series 7142 - 7142-31200

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Grade T Single Line Oxygen Welding Hose, Series 7142 - 7142-31200

Note: This product is no longer available - please contact us for further assistance
Availability:
Backordered
SKU 7142-31200
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)5/16
Maximum Working Pressure (psi)200Minimum Operating Temperature-40 °C
DivisionHose Products DivisionMinimum Bend Radius3 inch
Cover ColorGreenMaximum Operating Temperature93 °C
Maximum Operating Pressure200 psiWeight0.14 lb/ft
Inside Diameter7.9 mmOutside Diameter15.1 mm
Hose Reinforcement Material2 Plies of TextilePackage TypeReel
Compatible Fittingn/aCover MaterialChloroprene Rubber (CR)
ApplicationWeldingSpecifications MetARPM IP-7
MediaIndustrial Gases (Oxygen)Length per Package750 ft
Hose Inner Tube MaterialChloroprene Rubber (CR)Tube MaterialChloroprene Rubber (CR)
California Residents: Prop-65 Warning
Product resources

Literature and Reference Materials
