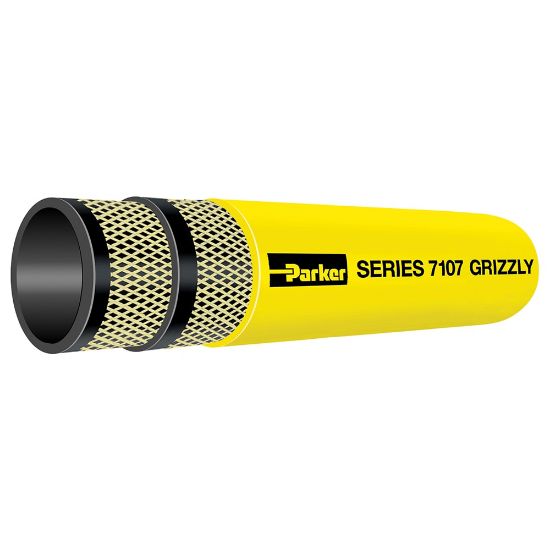

7107-50500 - GRIZZLY™ 500 Nonconductive Multipurpose Oil Resistant Hose, Series 7107

Name: 7107-50500 - GRIZZLY™ 500 Nonconductive Multipurpose Oil Resistant Hose, Series 7107
SKU: 7107-50500
Price: 6.49 USD
Availability: InStock

Grizzly 500 Nonconductive Oil Resistant Multipurpose Rubber Hose is a premium product designed to transfer air, mild chemicals, oil and water in applications to 212°F and 500 psi, Series 7107.

Availability:

160 in stock

Olivette, MO	120
Wichita, KS	40

Partner Available:

5063 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 7107-50500

$6.49/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/2
Standard Pack Qty (ft)	500	Maximum Working Pressure (psi)	500
Minimum Operating Temperature	-40 °F	Maximum Operating Temperature	212 °F
Inside Diameter	1/2 inch	Minimum Bend Radius	76.2 mm
Cover Color	Yellow	Weight	0.27 lb/ft
Cover Structure	Smooth	Package Type	Reel
Media	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	Hose Inner Tube Material	Nitrile
Maximum Operating Pressure	34.5 bar	Outside Diameter	22.2 mm
Cover Material	Nitrile/PVC	Compatible Fitting	7661 Series
Specifications Met	ARPM Class A Tube	Hose Reinforcement Material	4 Plies of Aramid

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
