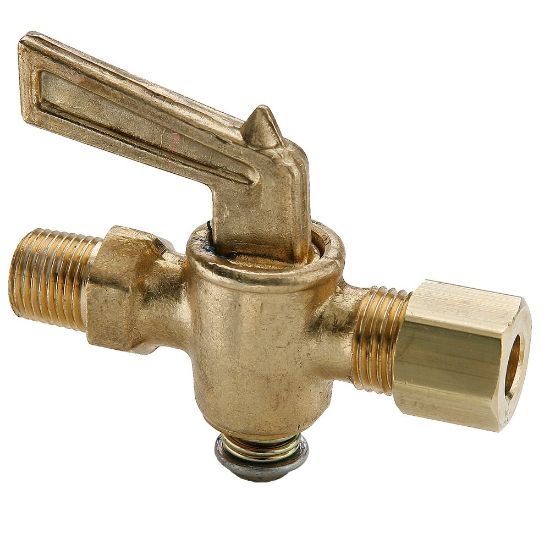

V304C-6-4 - Ground Plug Shutoff Cocks

Parke's ground plug shutoff cocks are manufactured from castings or forged bodies for low pressure applications.

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU V304C-6-4

$64.43/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Tube O.D. (inch)	na
Connection 1 Tube O.D. (inch)	3/8	Shape	Compression to Pipe
Connection 1 Thread Size (inch)	na	Connection 2 Thread Size (inch)	1/4
Connection 1 Style	Compression	Connection 2 Style	Male Pipe
Maximum Operating Pressure	2 bar	Maximum Operating Temperature	125 °F
Minimum Operating Temperature	32 °F	Body Material	Brass
