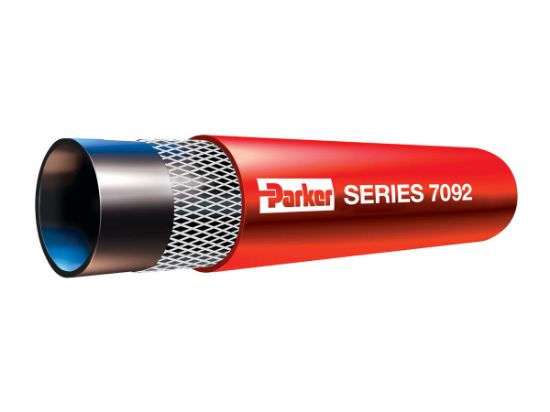

GST® II General Purpose Air & Water Hose - 7092-125204

Name: GST® II General Purpose Air & Water Hose - 7092-125204
SKU: 7092-125204

GST® II is a general purpose rubber hose designed for air compressor and shop air hose systems, transfer of mild/diluted chemicals, and water in applications to 212°F and 300 psi

Availability:

Backordered

SKU 7092-125204

$6.43

Products specifications

Attribute name	Attribute value
UOM	FT	Color	Red
Standard Pack Qty (ft)	250	Hose I.D. (inch)	1-1/4
Maximum Working Pressure (psi)	200	Minimum Operating Temperature	-40 °F
Division	Hose Products Division	Maximum Operating Temperature	100 °C
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Application	Air
Cover Color	Red	Cover Structure	Smooth
Inside Diameter	1-1/4 inch	Package Type	Reel
Media	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	Minimum Bend Radius	9 inch
Hose Reinforcement Material	4 Plies of Textile	Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)
Compatible Fitting	HY Series	Specifications Met	ARPM Class C Tube
Maximum Operating Pressure	13.8 bar	Tube Material	Ethylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)
Weight	0.77 lb/ft	Outside Diameter	1.781 inch
Pkg Qty	200	Inner Diameter	1.25 Inch
UOM	FT	Color	Red
Pkg Qty/UOM	200 FT	Working Pressure	200 PSI (14 bar)
Mating Fitting Series	HY	Package Type	Reel
Parker Group	Fluid Connector	Inch/Metric	Inch
Parker Division	Hose Products	Inner Diameter Inch/mm	Inch
Inner Diameter	1.25 Inch	Color	Red
Hose Pressure Range	Low	Trade Name	GST® II
Mating End Fitting Series	HY	Hose Category	Air & Multipurpose
Series	7092

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
