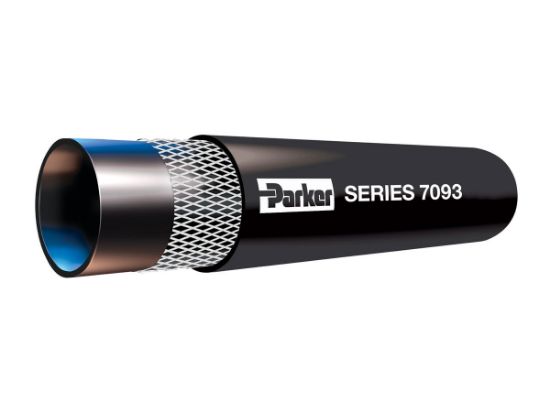

Picture of GST® II General Purpose Air & Water Hose - 7093-63304

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

GST® II General Purpose Air & Water Hose - 7093-63304

GST® II is a general purpose rubber hose designed for air compressor and shop air hose systems, transfer of mild/diluted chemicals, and water in applications to 212°F and 300 psi
Availability:
100 in stock
TOPEKA, KS100
SKU 7093-63304
$2.42
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTColorBlack
Hose I.D. (inch)5/8Maximum Working Pressure (psi)300
Standard Pack Qty (ft)450Minimum Operating Temperature-40 °C
MediaAirDivisionHose Products Division
Maximum Operating Temperature212 °FCover MaterialEthylene Propylene Diene Monomer (EPDM)
Maximum Operating Pressure300 psiPackage TypeCarton
Cover ColorBlackCover StructureSmooth
Inside Diameter5/8 inchOutside Diameter27 mm
Hose Reinforcement Material4 Plies of TextileCompatible FittingHY Series
Weight0.35 lb/ftApplicationMultipurpose
Specifications MetARPM Class C TubeHose Inner Tube MaterialARPM Class C Oil Resistance
Tube MaterialEthylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)Minimum Bend Radius139.7 mm
Inner Diameter0.625 InchPkg Qty450
UOMFTColorBlack
Pkg Qty/UOM450 FTWorking Pressure300 PSI (20 bar)
Mating Fitting SeriesHYPackage TypeReel
Parker GroupFluid ConnectorInch/MetricInch
Parker DivisionHose ProductsInner Diameter0.625 Inch
Inner Diameter Inch/mmInchColorBlack
Hose Pressure RangeLowTrade NameGST® II
Mating End Fitting SeriesHYHose CategoryAir & Multipurpose
Series7093
