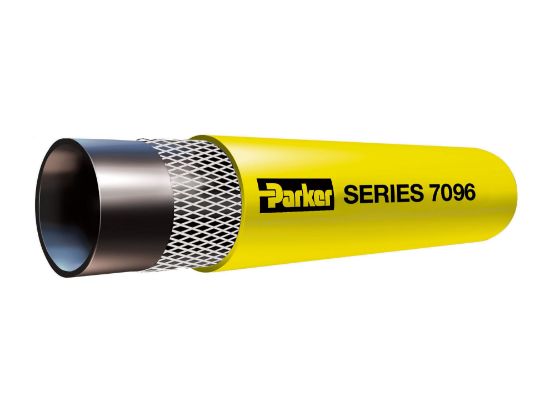

Picture of GST® II General Purpose Air & Water Hose - 7096-75304

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

GST® II General Purpose Air & Water Hose - 7096-75304

GST® II is a general purpose rubber hose designed for air compressor and shop air hose systems, transfer of mild/diluted chemicals, and water in applications to 212°F and 300 psi
Availability:
30 in stock
Decatur, IL30
SKU 7096-75304
$2.77
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTColorYellow
Hose I.D. (inch)3/4Standard Pack Qty (ft)400
Maximum Working Pressure (psi)300Minimum Operating Temperature-40 °F
MediaAirDivisionHose Products Division
Maximum Operating Temperature212 °FCover MaterialEthylene Propylene Diene Monomer (EPDM)
ApplicationAirPackage TypeCarton
Cover ColorYellowCover StructureSmooth
Inside Diameter19.1 mmWeight0.37 lb/ft
Hose Reinforcement Material4 Plies of TextileCompatible FittingHY Series
Minimum Bend Radius152.4 mmSpecifications MetARPM Class C Tube
Maximum Operating Pressure20.7 barTube MaterialEthylene Propylene Diene Monomer (EPDM) (ARPM Class C Oil Resistance)
Hose Inner Tube MaterialBlack (ARPM Class C Oil Resistance)Outside Diameter1.160 inch
Inner Diameter0.75 InchPkg Qty400
UOMFTColorYellow
Pkg Qty/UOM400 FTWorking Pressure300 PSI (20 bar)
Mating Fitting SeriesHYPackage TypeReel
Parker GroupFluid ConnectorInch/MetricInch
Parker DivisionHose ProductsInner Diameter0.75 Inch
Inner Diameter Inch/mmInchColorYellow
Hose Pressure RangeLowTrade NameGST® II
Mating End Fitting SeriesHYHose CategoryAir & Multipurpose
Series7096
